BigQuery

This page will walk through the setup of BigQuery in K using the direct connect method.

Integration details

Scope

Included

Comments

Metadata

YES



Lineage

YES



Usage

YES



Sensitive Data Scanner

NO

Sensitive Scanner does not currently support Big Query.


Step 1) Setup a Google Cloud Service Account

This step is performed by the Google Cloud Admin

  • Create a Service Account by going to the Google Cloud Admin or clicking on this link

    • Give the Service Account a name (e.g. KADA BQ Integration)

    • Select the Projects that include the BigQuery instance(s) that you want to catalog

    • Click Save

  • Create a Service Token

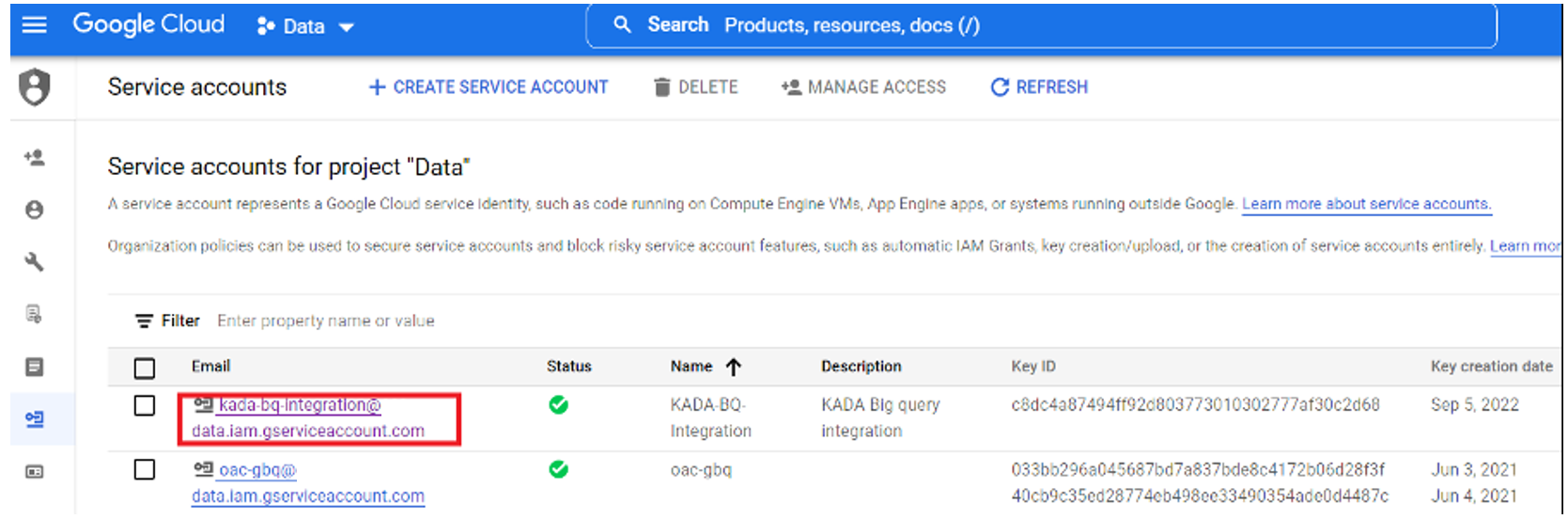

    • Click on the Service Account

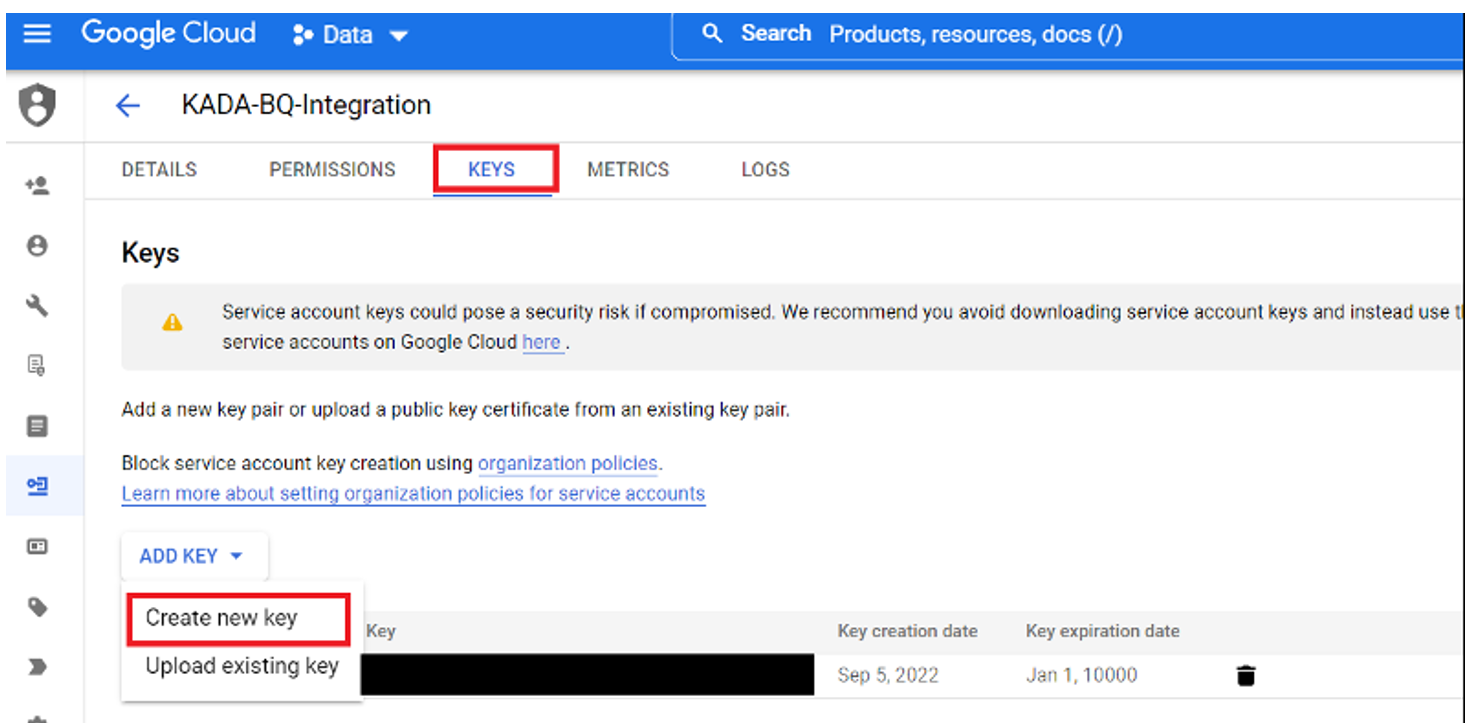

    • Select the Keys tab. Click on Create new key

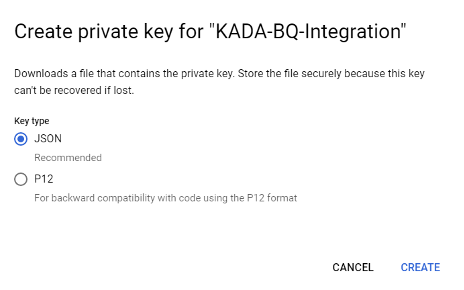

    • Select the JSON option. After clicking ‘CREATE’, the JSON file will automatically download to your device. Provide this to the user(s) that will complete the next steps

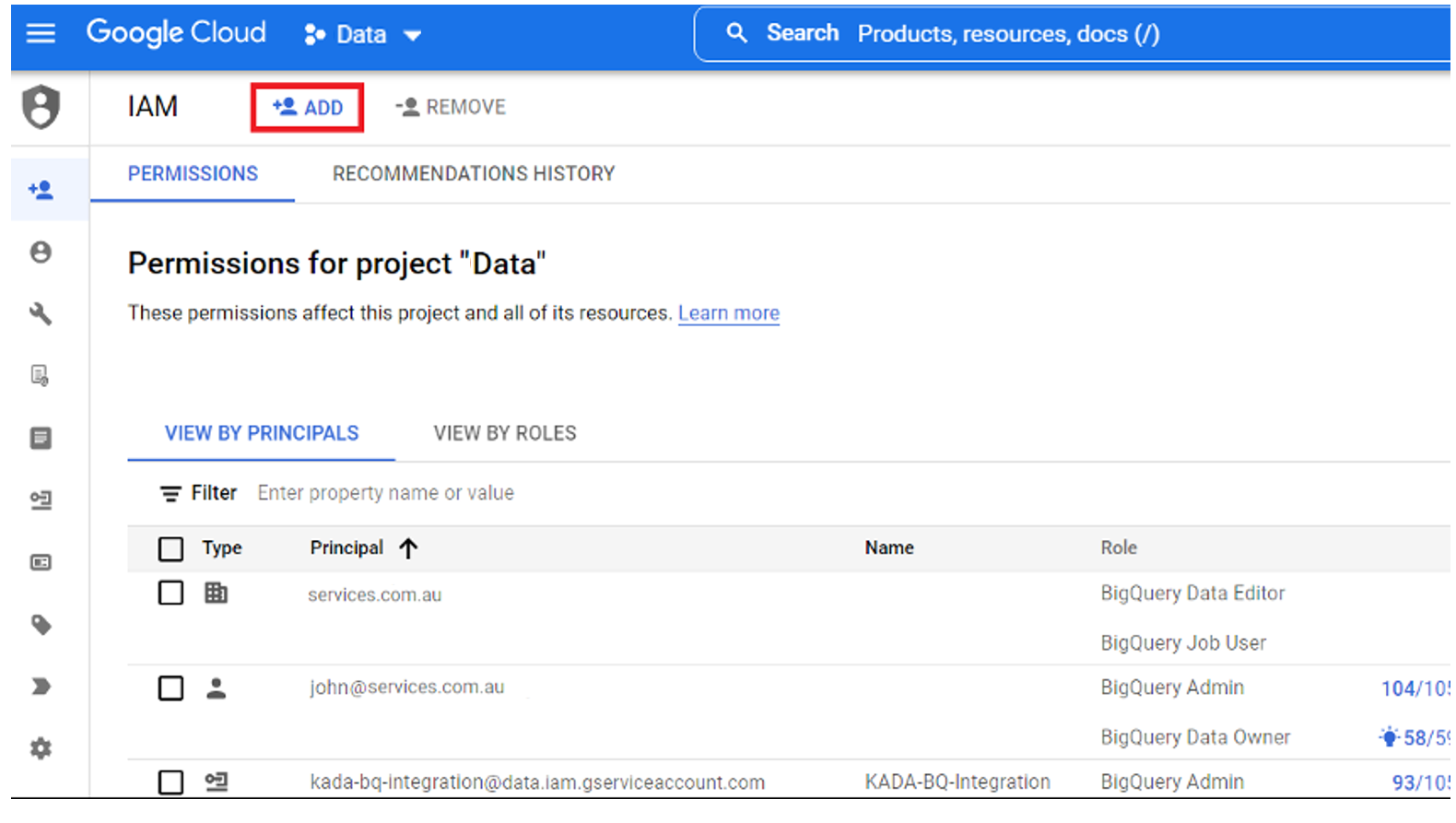

  • Add grants on the Service Account by going to IAM page or clicking on this link

    • Click on ADD

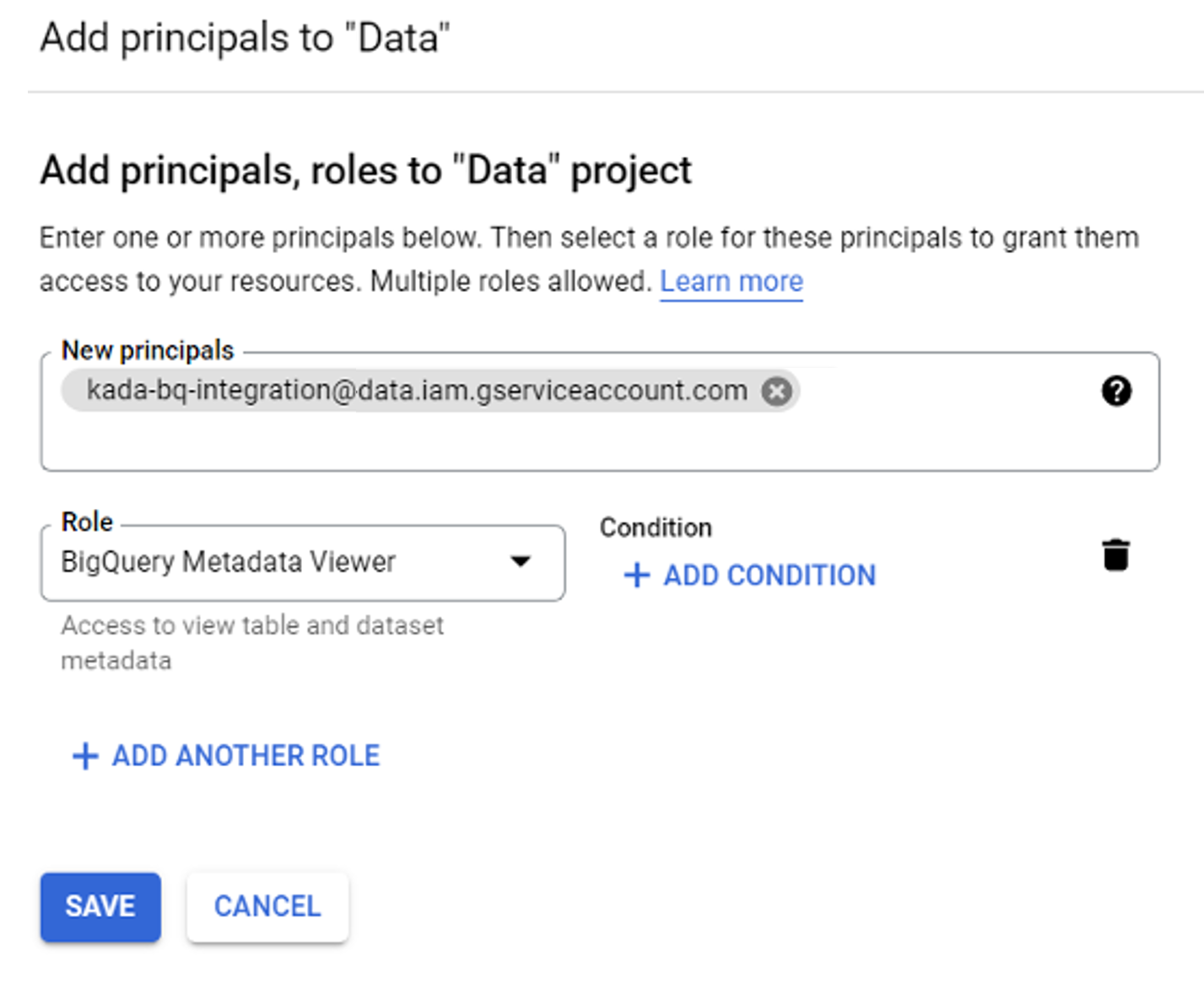

    • Add the Service Account to the ‘New principals’ field.

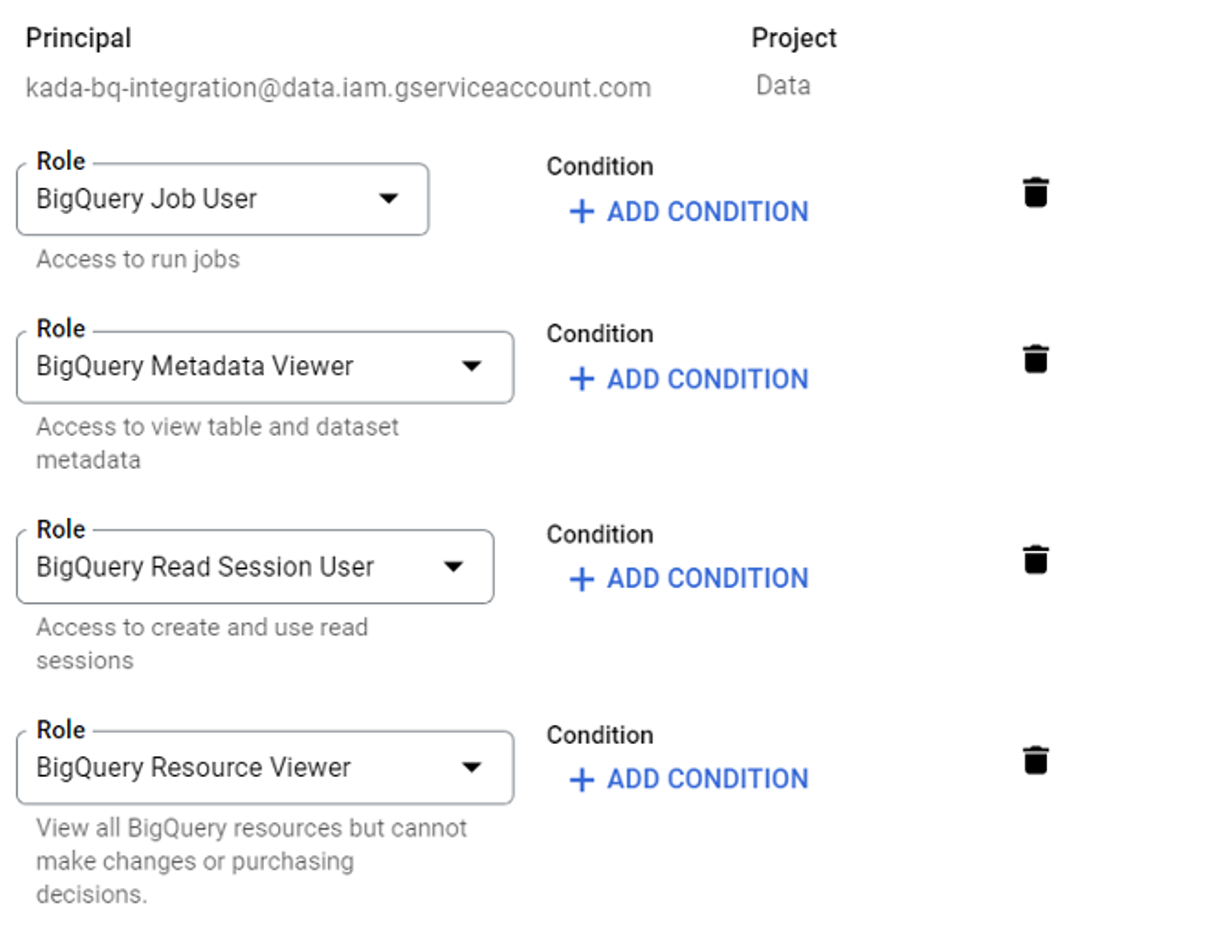

    • Grant the following roles this principal as shown in the following screenshot.

      • BigQuery Job User

      • BigQuery Metadata Viewer

      • BigQuery Read Session User

      • BigQuery Resource Viewer

    • Click SAVE


Step 2) Connecting K to BigQuery

  • Select Platform Settings in the side bar

  • In the pop-out side panel, under Integrations click on Sources

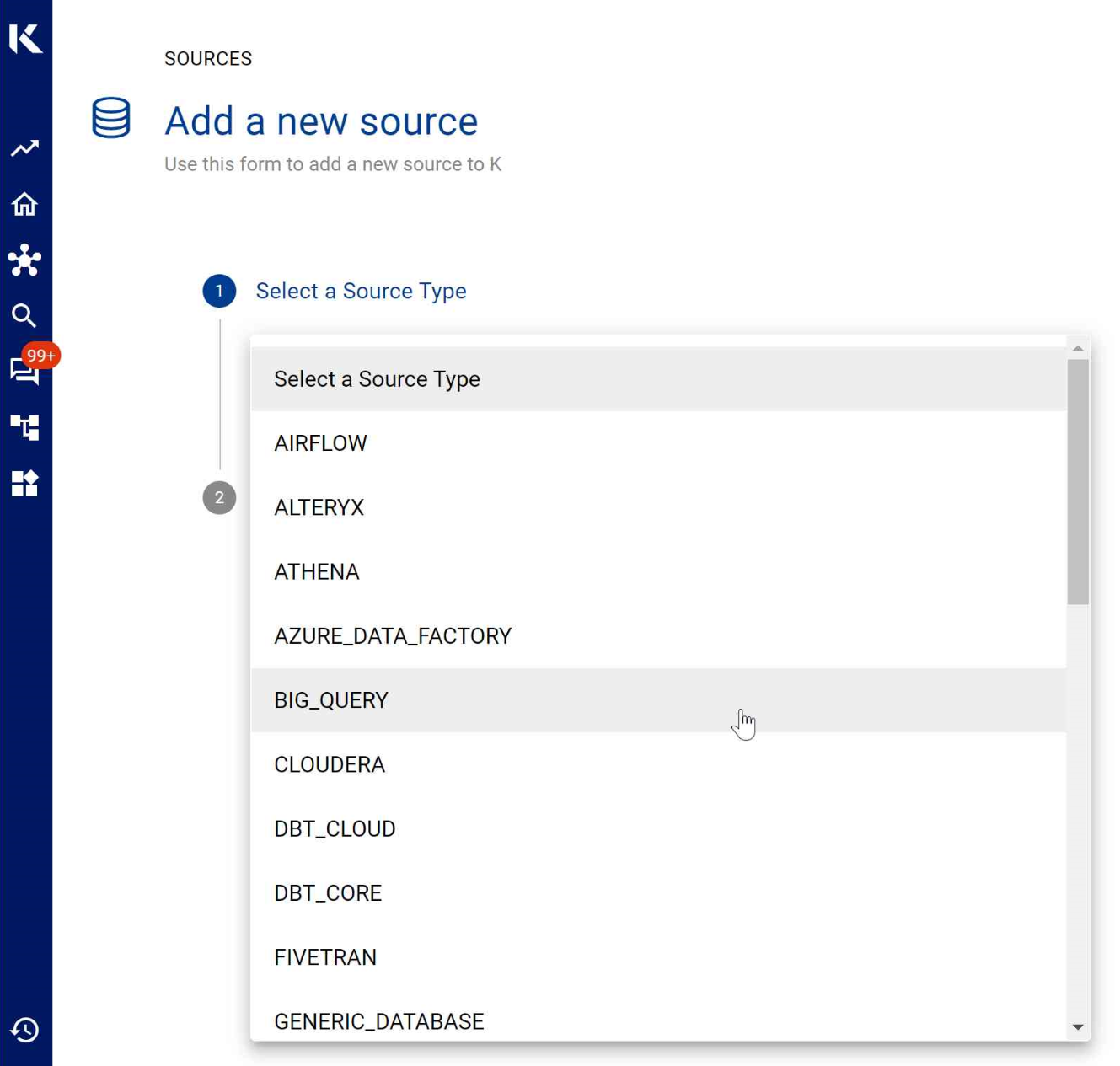

  • Click Add Source and select BigQuery

  • Select Direct Connect

  • Fill in the Source Settings and click Save & Next

    • Name: The name you wish to give your BigQuery Service in K

    • Host: Add your BigQuery Host Name (e.g. cloud.google.com)

    • Region: Select the region your Service is located in (check with your admin if you are unsure)

  • Add the Connection details and click Save & Next when connection is successful

    • Credentials: Copy the content of the Credentials.json created in Step 1

  • Test your connection and click Save

  • Select the Databases you wish to load into K and click Finish Setup

    • All databases will be listed. If you have a lot of databases this may take a few seconds to load

  • Return to the Sources page and locate the new BigQuery source that you loaded

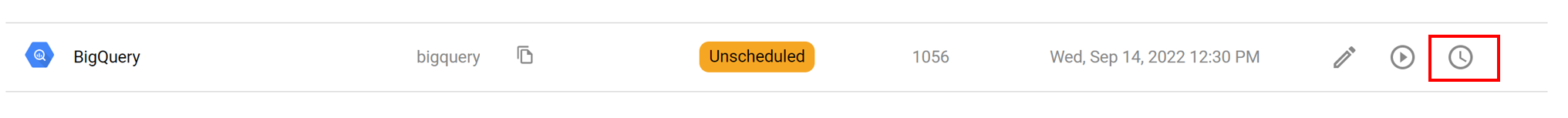

  • Click on the clock icon to select Edit Schedule and set your preferred schedule for the BigQuery load

Note that scheduling a source can take up to 15 minutes to propagate the change.


Step 3) Manually run an ad hoc load to test BigQuery setup

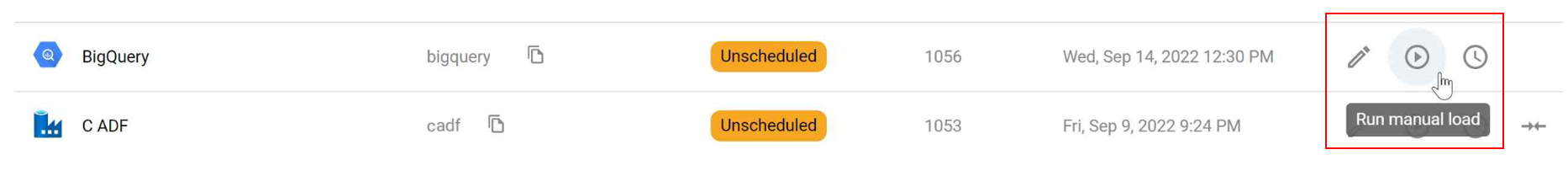

  • Next to your new Source, click on the Run manual load icon

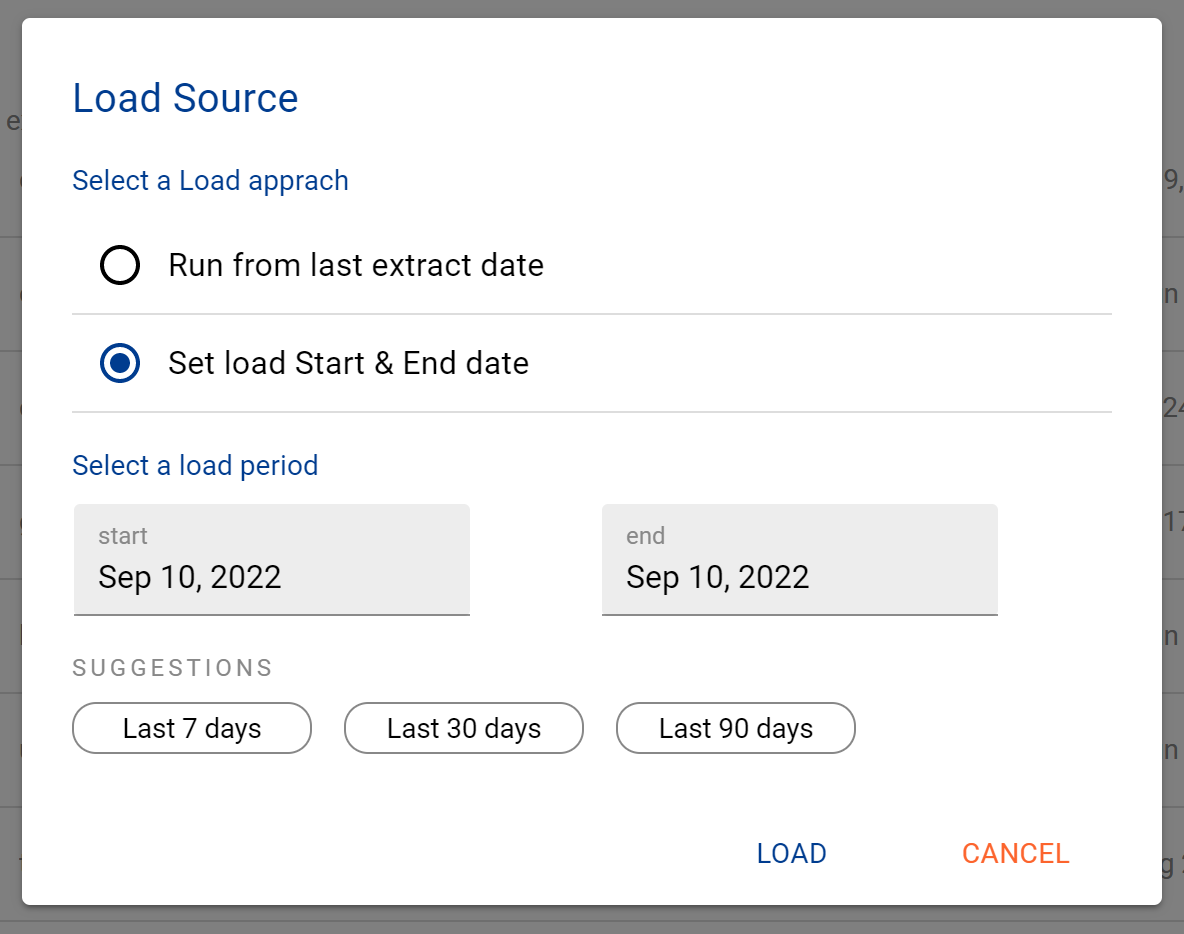

  • Confirm how your want the source to be loaded

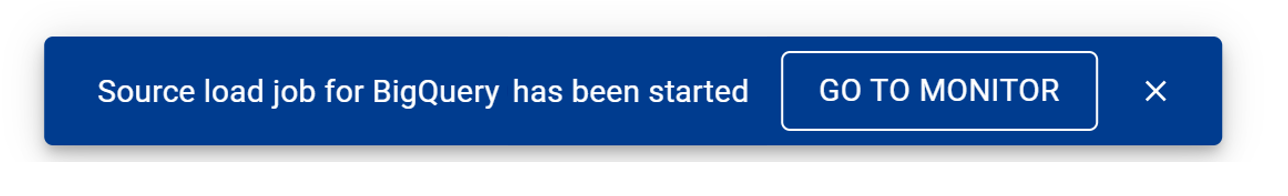

  • After the source load is triggered, a pop up bar will appear taking you to the Monitor tab in the Batch Manager page. This is the usual page you visit to view the progress of source loads

A manual source load will also require a manual run of

  • DAILY

  • GATHER_METRICS_AND_STATS

To load all metrics and indexes with the manually loaded metadata. These can be found in the Batch Manager page

Troubleshooting failed loads

  • If the job failed at the extraction step

    • Check the error. Contact KADA Support if required.

    • Rerun the source job

  • If the job failed at the load step, the landing folder failed directory will contain the file with issues.

    • Find the bad record and fix the file

    • Rerun the source job
