Bytehouse

This page will walkthrough the setup of Bytehouse in K using the direct connect method

Integration details

Scope

Included

Comments

Metadata

YES

Lineage

YES

Usage

NO

Sensitive Data Scanner

N/A

Known limitations

  • TBC


Step 1: Establish Bytehouse Access

I??

The service user/account/role will require permissions to the following:

  • ??

After this step you should have the following information

  • Tenant Account ID

  • Role

  • Key

  • Secret

  • ??


Step 2: Create the Source in K

Create an Bytehouse source in K

  • Select Platform Settings in the side bar

  • In the pop-out side panel, under Integrations click on Sources

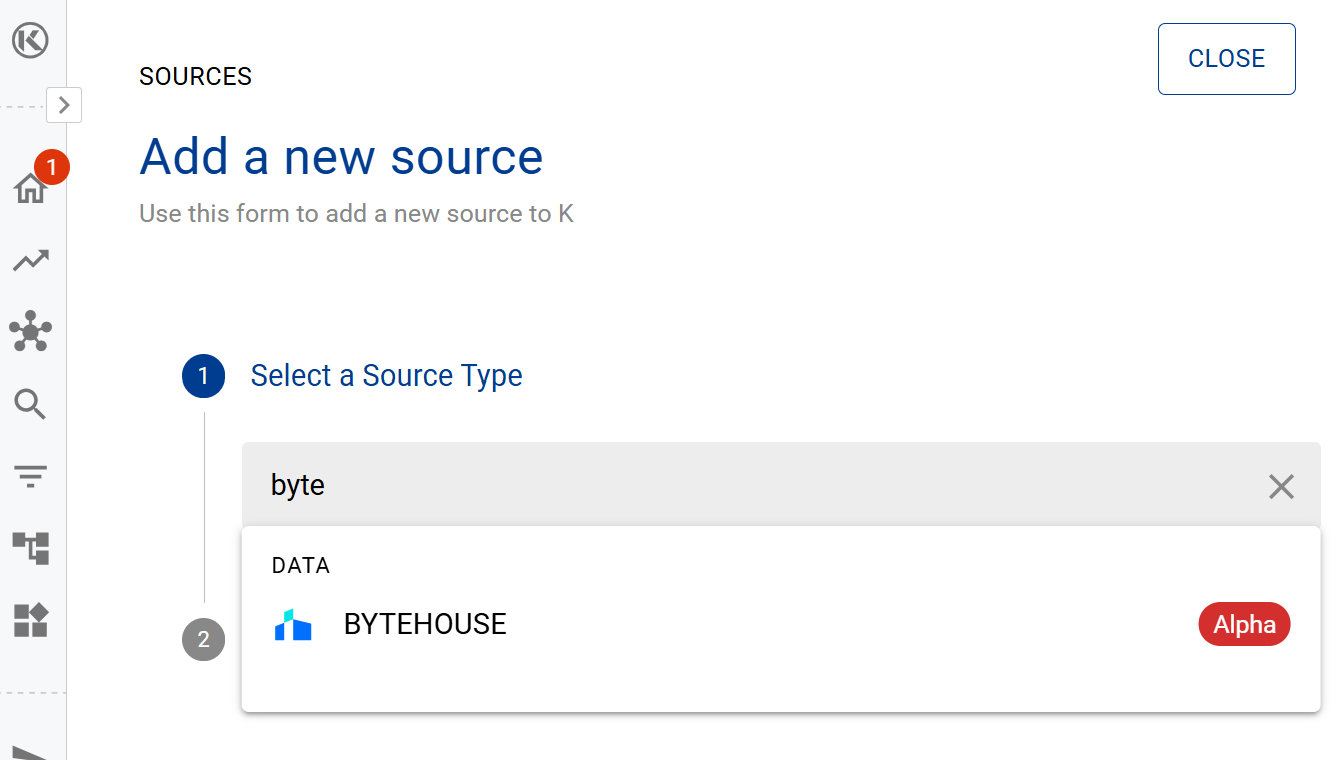

  • Click Add Source and select Bytehouse


  • Select Direct Connect and add your Bytehouse Source Settings

    • Name: Give the Bytehouse source a name in K.

    • Host: Enter a hostname for your Bytehouse instance

    • Tenant Account ID: You can locate the Account ID in the Tenant Management tab

    • Gateway and Gateway Port: Refer to Supported Cloud Providers and Regions--ByteHouse-Byteplus for your Gateway details

    • Confirm if you want to:

      • Enable data masking

      • Extract meta only

  • Click Save & Next

  • Setup you API connection

    • Add your API Key or Token

  • Test your connection and click Next


Step 3: Schedule Bytehouse source load

  • Select Platform Settings in the side bar

  • In the pop-out side panel, under Integrations click on Sources

  • Locate your new Bytehouse Source and click on the Schedule Settings (clock) icon to set the schedule


Step 4: Manually run an ad hoc load to test Bytehouse

  • Next to your new Source, click on the Run manual load icon

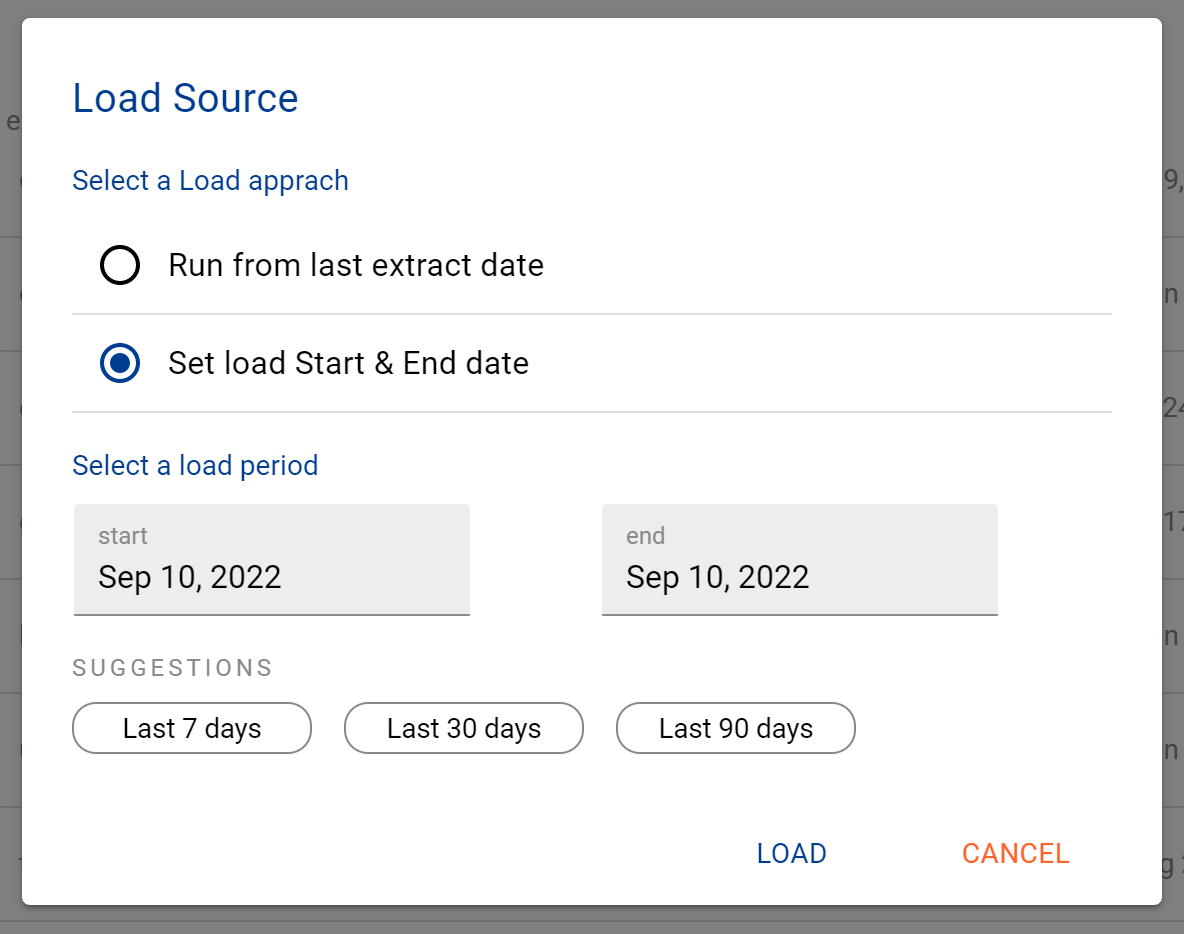

  • Confirm how your want the manual run to be completed

  • After the source load is triggered, a pop up bar will appear taking you to the Monitor tab in the Batch Manager page. This is the usual page you visit to view the progress of source loads

A manual source load will also require a manual run of

  • DAILY

  • GATHER_METRICS_AND_STATS

To load all metrics and indexes with the manually loaded metadata. These can be found in the Batch Manager page



Troubleshooting failed loads

  • If the job failed at the extraction step

    • Check the error. Contact KADA Support if required.

    • Rerun the source job

  • If the job failed at the load step, the landing folder failed directory will contain the file with issues.

    • Find the bad record and fix the file

    • Rerun the source job
