dbt Cloud

This page will walkthrough the setup of dbt Cloud in K using the direct connect method

Each dbt Cloud account will need to be added as a separate dbt source.

Integration details

Step 1) Create a Service Token

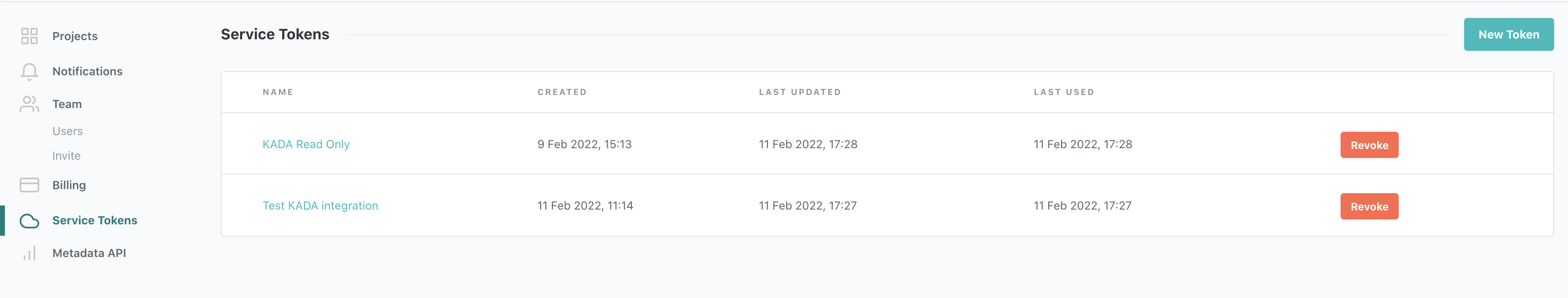

• Log into your dbt cloud account and go to Account Settings > Service Tokens

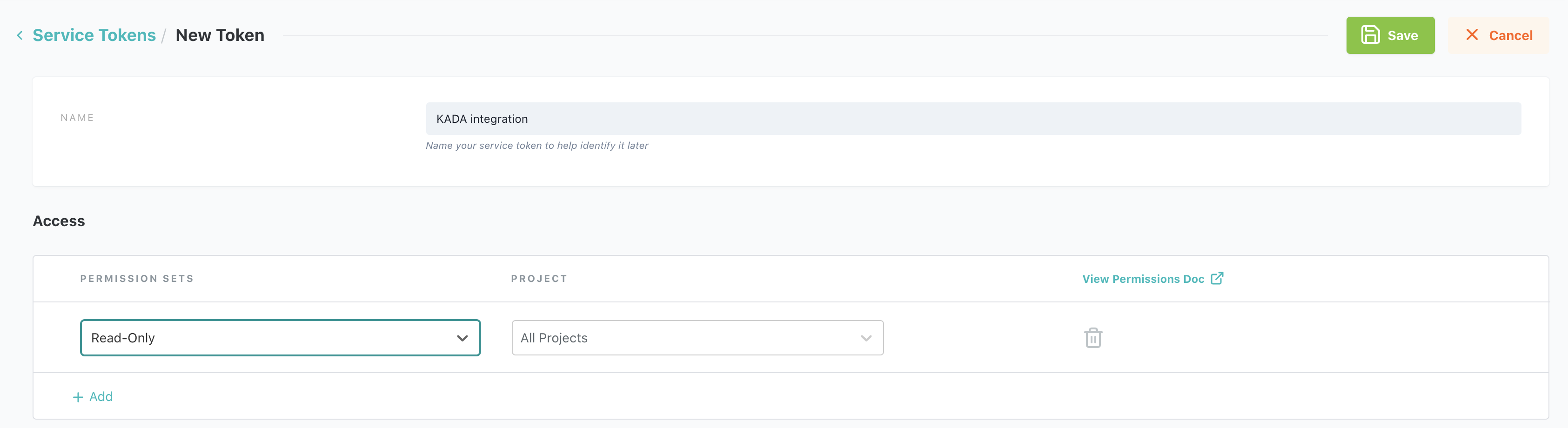

• Click New Token.

• Give the Token a name

• Add Read Only Access to All Projects



• Copy the Token for use in the next step

Step 2) Add dbt Cloud as a New Source

• Select Platform Settings in the side bar

• In the pop-out side panel, under Integrations click on Sources

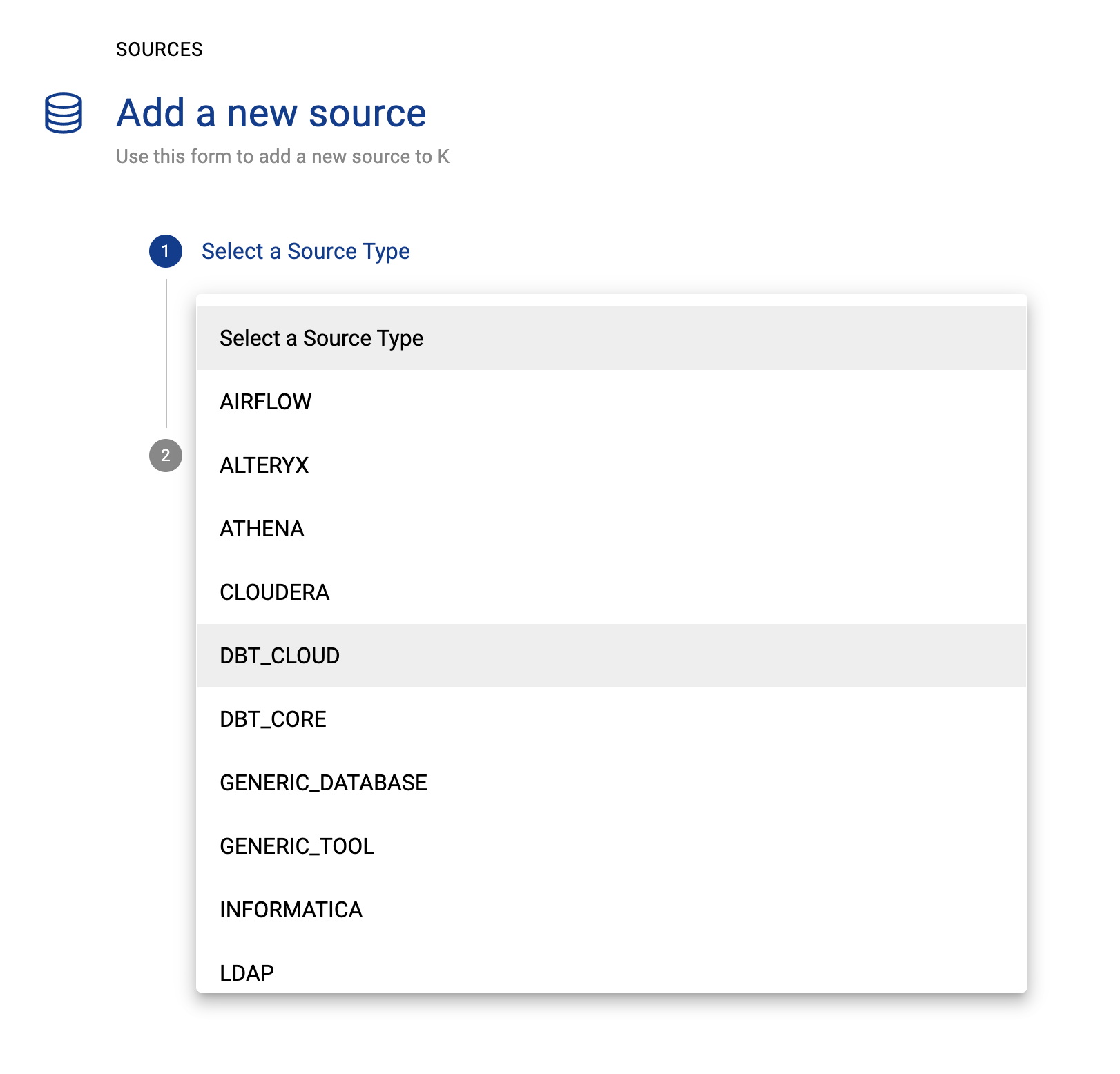

• Click Add Source and select dbt CLOUD

• Select Direct Connect and add your dbt Cloud details and click Next

• Fill in the Source Settings and click Save & Next

  • Name: Give the dbt source a name in K

  • Host: add your cloud.getdbt.com.[account id]

  • Account ID: You can find your Account ID in the URL when you log into your dbt cloud console. e.g. https://cloud.getdbt.com/#/accounts/ [account ID]/projects/[project ID]/dashboard/

  • Environment ID: Add the ID for each Environment you want to include. Add the Environment ID’s as a comma separated list

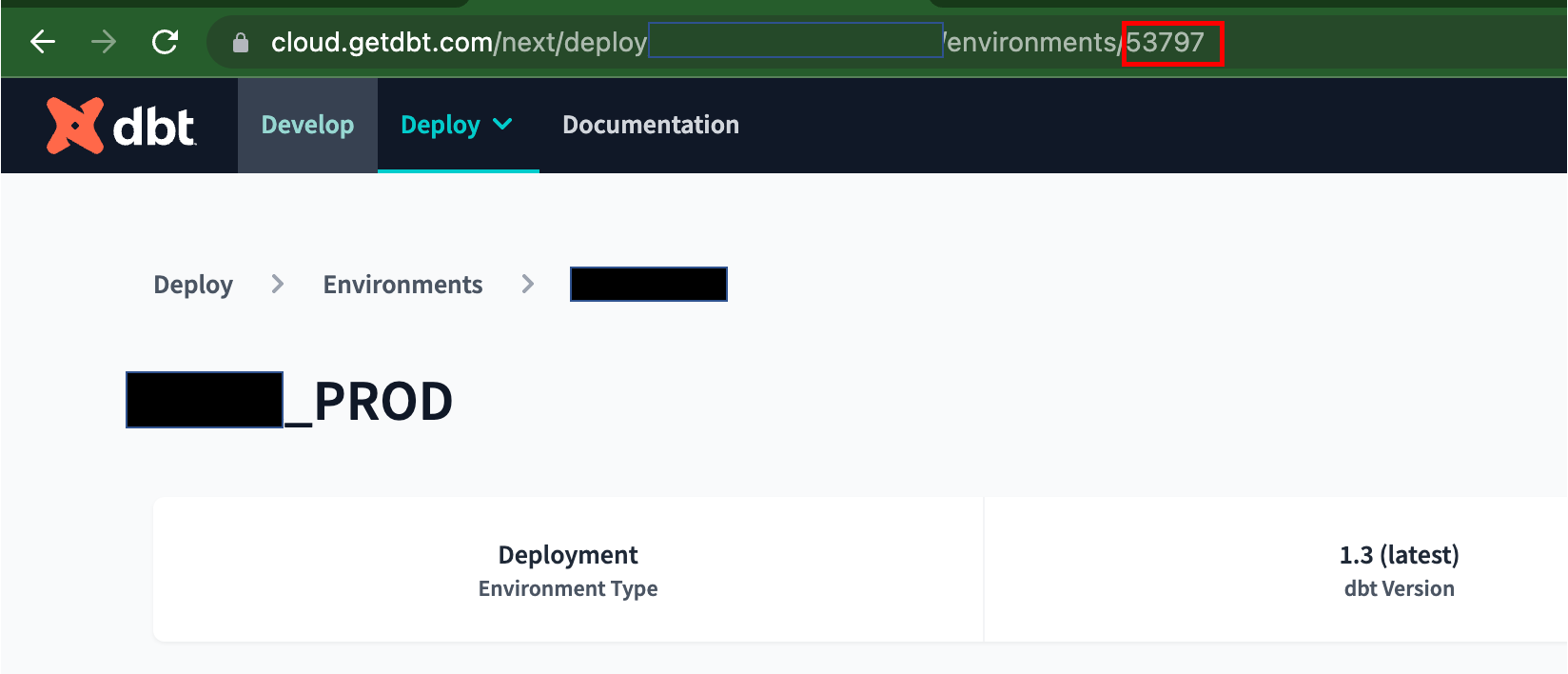

    • Each Project may have more than one environments. You can find the ID by going to the Environments page for a project and looking at the URL.

    • The value must be the ID, not the name of the environment.

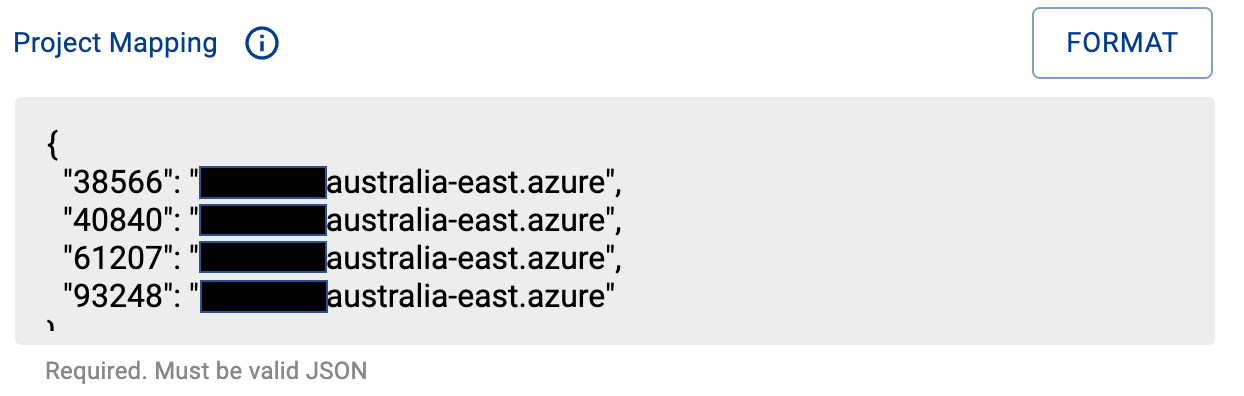

  • Project mapping: Each DBT project is associated with a source. Add a mapping between the DBT project and the source by following the instructions here Host / Database Mapping. You will need to add a mapping for each project.



    • NOTE: You can find the ID by going to the Project page in your DBT cloud account and looking at the URL



• Add your Token copied from Step 1 and click Save

• Test your connection and click Save

• Click Finish Setup

Step 3) Schedule dbt Cloud source load

• Select Platform Settings in the side bar

• In the pop-out side panel, under Integrations click on Sources

• Locate your new dbt Cloud Source and click on the Schedule Settings (clock) icon to set the schedule

Note that scheduling a source can take up to 15 minutes to propagate the change.

Step 4) Manually run an ad hoc load to test dbt Cloud setup

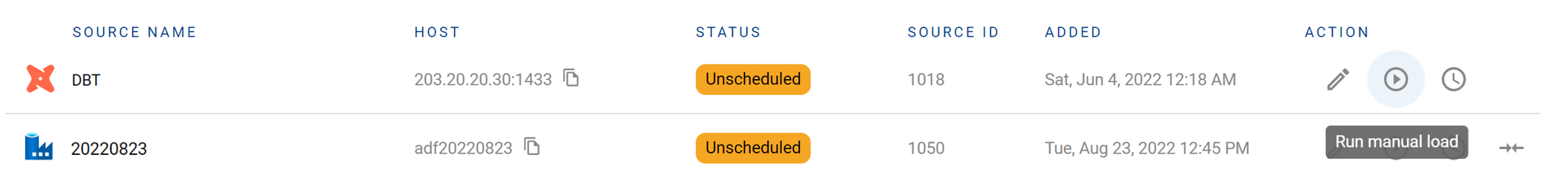

• Next to your new Source, click on the Run manual load icon

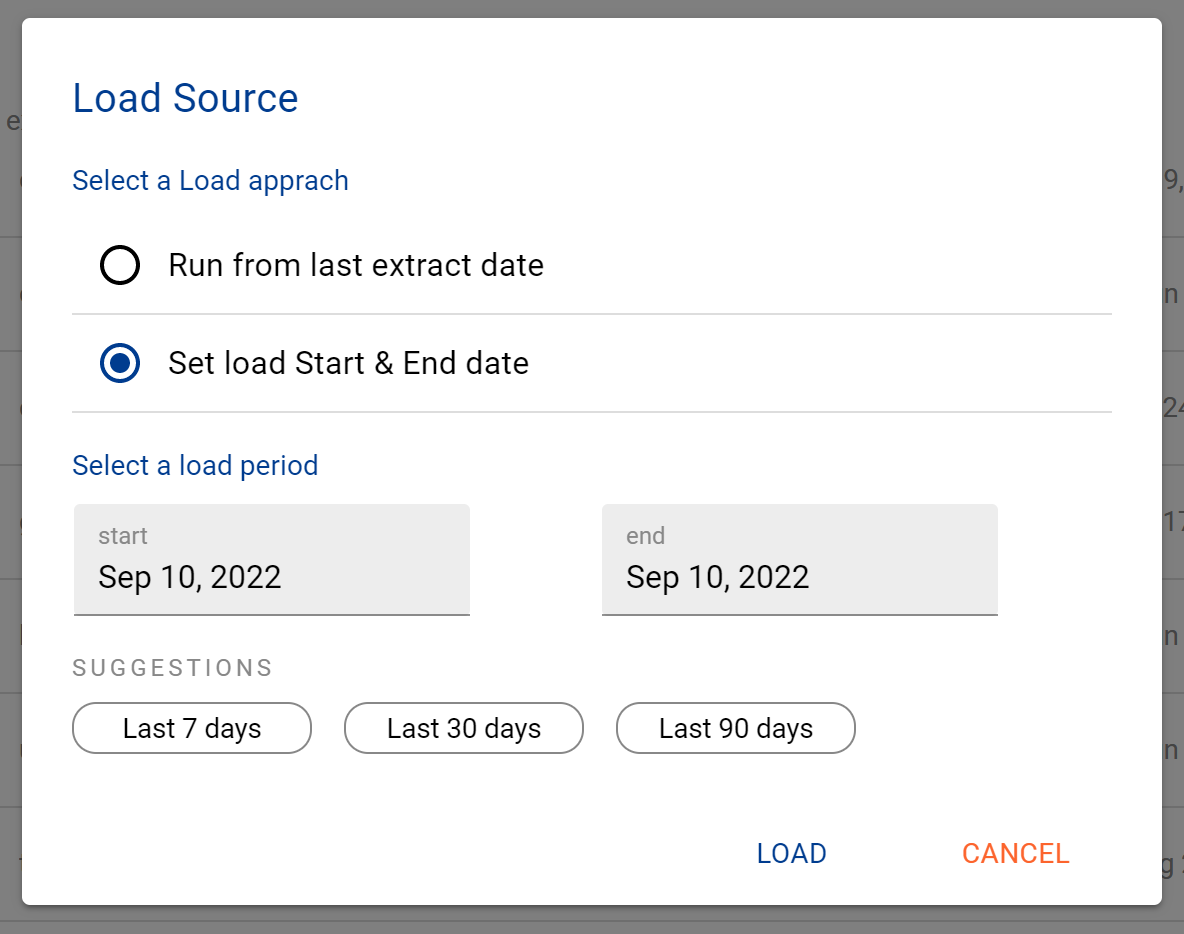

• Confirm how your want the source to be loaded

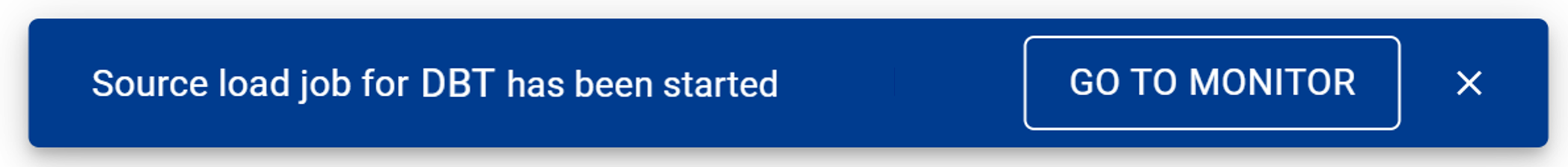

• After the source load is triggered, a pop up bar will appear taking you to the Monitor tab in the Batch Manager page. This is the usual page you visit to view the progress of source loads



A manual source load will also require a manual run of

• DAILY

• GATHER_METRICS_AND_STATS

To load all metrics and indexes with the manually loaded metadata. These can be found in the Batch Manager page

Troubleshooting failed loads

• If the job failed at the extraction step

  • Check the error. Contact KADA Support if required.

  • Rerun the source job

• If the job failed at the load step, the landing folder failed directory will contain the file with issues.

  • Find the bad record and fix the file

  • Rerun the source job
