SQL Server

This page will guide you through the setup of SQL Server in K using the direct connect method.

Integration details

Scope

Included

Comments

Metadata

YES

Lineage

YES

Requires logging to be enabled

Usage

YES

Sensitive Data Scanner

NO

Sensitive data scanner does not currently support SQL Server

Known limitations

  • Queries, macros and procedures must include fully qualified names in order to be correctly parsed.


Step 1) SQL Server Access

Setting up SQL Server for metadata extraction is a 2 step process.

Step 1: Establish SQLServer Access

Note down the SQL Server connection details

Create a SQL Server user with read access per SQL Server database.

  • INFORMATION_SCHEMA.ROUTINES

  • INFORMATION_SCHEMA.VIEWS

  • INFORMATION_SCHEMA.TABLE_CONSTRAINTS

  • INFORMATION_SCHEMA.CONSTRAINT_COLUMN_USAGE

  • INFORMATION_SCHEMA.TABLES

  • INFORMATION_SCHEMA.COLUMNS

  • INFORMATION_SCHEMA.VIEWS

  • sys.foreign_key_columns

  • sys.object

  • sys.tables

  • sys.schemas

  • sys.columns

  • VIEW SERVER STATE permission on the server

    • Required for Extended Event log

  • VIEW Definition

    • All databases

      CODE
      USE master
      GO
      GRANT VIEW ANY DEFINITION TO Kadauser
    • Selected databases. Repeat for each database

      CODE
      USE <REPLACE WITH A DATABASE>
      GO
      GRANT VIEW ANY DEFINITION TO Kadauser

Step 2: Setup Extended Event Logging

A SQL Server Admin will need to setup an extended events process to capture Query Execution in SQLServer.

Some tuning of the logging parameters may be needed depending on processing volume on your SQLServer instance.

Example script to setup Extended Events logging.

CODE
--Query To Create Extended Events Session
CREATE EVENT SESSION [KADA] ON SERVER ADD EVENT sqlserver.sp_statement_completed (
	ACTION(package0.collect_system_time, package0.event_sequence, sqlos.task_time, sqlserver.client_app_name, sqlserver.client_hostname, sqlserver.database_id, sqlserver.database_name, sqlserver.nt_username, sqlserver.query_hash, sqlserver.server_instance_name, sqlserver.server_principal_name, sqlserver.server_principal_sid, sqlserver.session_id, sqlserver.session_nt_username, sqlserver.transaction_id, sqlserver.username) WHERE (
		(
			[statement] LIKE '%CREATE %'
			OR [statement] LIKE '%DROP %'
			OR [statement] LIKE '%MERGE %'
			OR [statement] LIKE '%FROM %'
			)
		AND [sqlserver].[server_principal_name] <> N'USERS_TO_EXCLUDE'
		AND [sqlserver].[is_system] = (0)
		AND NOT [statement] LIKE 'Insert into % Values %'
		AND [sqlserver].[Query_hash] <> (0)
		)
	), ADD EVENT sqlserver.sql_statement_completed (
	SET collect_statement = (1) ACTION(package0.collect_system_time, package0.event_sequence, sqlos.task_time, sqlserver.client_app_name, sqlserver.client_hostname, sqlserver.database_id, sqlserver.database_name, sqlserver.nt_username, sqlserver.query_hash, sqlserver.server_instance_name, sqlserver.server_principal_name, sqlserver.session_id, sqlserver.session_nt_username, sqlserver.transaction_id, sqlserver.username) WHERE (
		(
			[statement] LIKE '%CREATE %'
			OR [statement] LIKE '%DROP %'
			OR [statement] LIKE '%MERGE %'
			OR [statement] LIKE '%FROM %'
			)
		AND [sqlserver].[server_principal_name] <> N'N'USERS_TO_EXCLUDE'
		AND [sqlserver].[is_system] = (0)
		AND NOT [statement] LIKE 'Insert into % Values %'
		AND [sqlserver].[Query_hash] <> (0)
		)
	) ADD TARGET package0.event_file (SET filename = N'G:\extended events\Extendedevents.xel', max_file_size = (20), max_rollover_files = (100))
	WITH (MAX_MEMORY = 4096 KB, EVENT_RETENTION_MODE = ALLOW_MULTIPLE_EVENT_LOSS, MAX_DISPATCH_LATENCY = 30 SECONDS, MAX_EVENT_SIZE = 0 KB, MEMORY_PARTITION_MODE = NONE, TRACK_CAUSALITY = ON, STARTUP_STATE = ON)
GO


-- Check if the session is dropping events and see other data about the session
-- https://sqlperformance.com/2019/10/extended-events/understanding-event-loss-with-extended-events
SELECT
   s.name,
   s.total_regular_buffers,
   s.regular_buffer_size,
   s.total_large_buffers,
   s.large_buffer_size,
   s.dropped_event_count,
   s.dropped_buffer_count,
   s.largest_event_dropped_size
FROM sys.dm_xe_sessions AS s;


-- Also check log growth rate. Apply filters to remove noise.
-- some filters:
-- [sqlserver].[server_principal_name] = N'name of principal'
-- [sqlserver].[is_system] = (0)
-- [sqlserver].[client_app_name] = N'name of app'


Step 2) Create the Source in K

  • Select Platform Settings in the side bar

  • In the pop-out side panel, under Integrations click on Sources

  • Click Add Source and select SQL Server

  • Select Direct Connect and add your SQL Server details and click Next

  • Fill in the Source Settings and click Next

    • Name: The name you wish to give your SQL Server

    • Host: Add the server location for the SQL Server instance

    • Version number: Set the SQL Server version

    • Extract Meta Only: Set this if extended events is not enabled

  • Add the Connection details and click Save & Next when connection is successful

    • Host: Add the SQL Server location

    • Username: Add the SQL Server User created in Step 1

    • Password: Add the User password created in Step 1

  • Test your connection and click Save

  • Return to the Sources page and locate the new SQL Server source that you created

  • Click on the clock icon to select Edit Schedule and set your preferred schedule for the SQL Server load

Note that scheduling a source can take up to 15 minutes to propagate the change.


Step 3) Manually run an ad hoc load to test SQL Server setup

  • Next to your new Source, click on the Run manual load icon

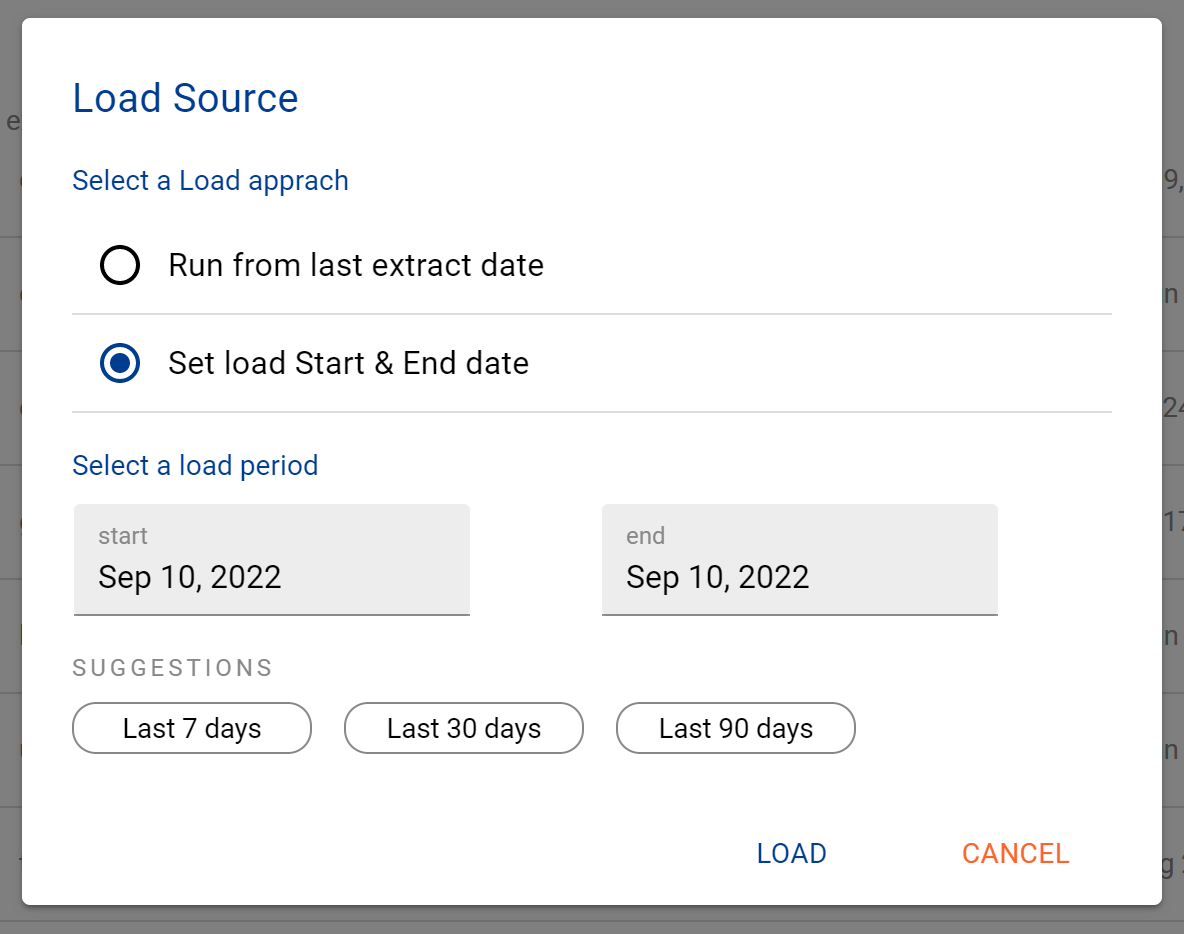

  • Confirm how you want the source to be loaded

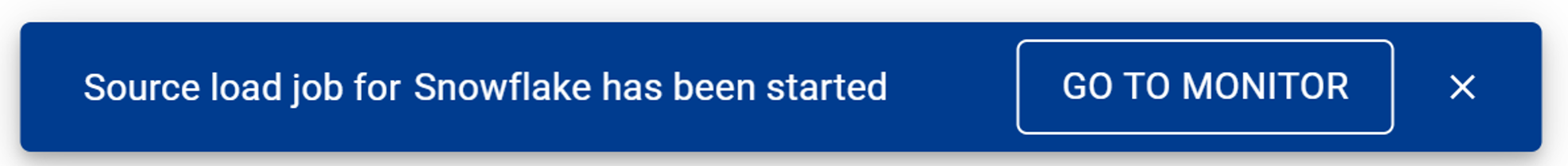

  • After the source load is triggered, a pop up bar will appear taking you to the Monitor tab in the Batch Manager page. This is the usual page you visit to view the progress of source loads

A manual source load will also require a manual run of

  • DAILY

  • GATHER_METRICS_AND_STATS

To load all metrics and indexes with the manually loaded metadata. These can be found in the Batch Manager page

Troubleshooting failed loads

  • If the job failed at the extraction step

    • Check the error. Contact KADA Support if required.

    • Rerun the source job

  • If the job failed at the load step, the landing folder failed directory will contain the file with issues.

    • Find the bad record and fix the file

    • Rerun the source job
