Glue (via Collector method) - v3.0.0

About Collectors

Collector Method

Collectors are extractors that are developed and managed by you (A customer of K).

KADA provides python libraries that customers can use to quickly deploy a Collector.

Why you should use a Collector

There are several reasons why you may use a collector vs the direct connect extractor:

  1. You are using the KADA SaaS offering and it cannot connect to your sources due to firewall restrictions

  2. You want to push metadata to KADA rather than allow it pull data for Security reasons

  3. You want to inspect the metadata before pushing it to K

Using a collector requires you to manage

  1. Deploying and orchestrating the extract code

  2. Managing a high water mark so the extract only pull the latest metadata

  3. Storing and pushing the extracts to your K instance.


Pre-requisites


Step 1: Establish Glue Access

It is advised you create a new Role for the service user provided to KADA and have a policy that allows the below, see Identity and access management in Glue - Amazon Glue

The service user/account/role will require permissions to the following

  1. Ability to GET and LIST s3 resources that you want the user to have access to if required.

  2. Call the following Glue APIs

    1. get_tables

    2. get_databases

Example Role Policy to allow Glue Access with least privileges for actions, this example allows the ACCOUNT ARN to assume the role. You may also choose to just assign the policy directly to a new user and use that user without assuming roles. In the scenario you do wish to assume a role, please note down the role ARN to be used when onbaording/extracting. Note the YOUR-REGION and AWS-ACCOUNT-ID. You may be more broad and allow all regions with *

Note this is a Cloudformation Template and is a YAML not JSON file

YAML
AWSTemplateFormatVersion: "2010-09-09"
Description: 'AWS IAM Role - Glue Access to KADA'
Resources:
  KadaGlueRole:
    Type: "AWS::IAM::Role"
    Properties:
      RoleName: "KadaGlueRole"
      MaxSessionDuration: 43200
      Path: "/"
      AssumeRolePolicyDocument:
        Version: "2012-10-17"
        Statement:
        - Effect: "Allow"
          Principal:
            AWS: "[ACCOUNT ARN]"
          Action: "sts:AssumeRole"

  KadaGluePolicy:
    Type: 'AWS::IAM::Policy'
    Properties:
      PolicyName: root
      PolicyDocument:
        Version: "2012-10-17"
        Statement:
          - Effect: Allow
            Action:
              - glue:GetTables
              - glue:GetDatabases
            Resource:
              - 'arn:aws:glue:YOUR-REGION:AWS-ACCOUNT-ID:catalog'
              - 'arn:aws:glue:your-region:your-account-id:database/*'
              - 'arn:aws:glue:YOUR-REGION:AWS-ACCOUNT-ID:table/*/*'
      Roles:
        - !Ref KadaGlueRole

Alternatively you may wish to just create the Policy using this example JSON

JSON
{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "KadaGluePolicy",
            "Effect": "Allow",
            "Action": [
                "glue:GetDatabases",
                "glue:GetTables"
            ],
            "Resource": [
                "arn:aws:glue:YOUR-REGION:AWS-ACCOUNT-ID:catalog",
                "arn:aws:glue:YOUR-REGION:AWS-ACCOUNT-ID:database/*",
                "arn:aws:glue:YOUR-REGION:AWS-ACCOUNT-ID:table/*/*"
            ]
        }
    ]
}

Step 1 Optional: Creating Glue Crawlers over S3

See https://docs.aws.amazon.com/glue/latest/dg/add-crawler.html for more details.

You may also wish to set up a crawler over your s3 data to ingest into Glue.

  1. The crawler will need an IAM role with the direct policies attached

    1. AWSGlueServiceRole

    2. AWSS3FullAccessRole

  2. Create a Database in the Glue Console

    1. In the left navigation pane, choose “Databases”

    2. Click “Add database” and provide a name for the database

  3. Create a s3 Crawler

    1. In the left navigation pane, choose “Crawlers”

    2. Click “Add crawler” and provide a name for the crawler

    3. Choose “Data stores” and select “S3” as the data store type

    4. Specify the S3 path to the bucket you want to crawl

    5. Choose “Next” and select the IAM role you created earlier

    6. Choose “Next” and select the Database created in Step 2.

    7. Configure other settings like frequency etc.

    8. Choose “Next” to review settings then “Finish”

  4. Run the Crawler

    1. Select the Crawler you created and click “Run Crawler” and wait for completion, once it’s finished you should be able to see the data in the Database with tables created based on the data in S3

Crawler costs can be controlled by sampling and reducing the frequency that the crawler runs.
https://repost.aws/knowledge-center/long-running-glue-crawler


Step 2: Create the Source in K

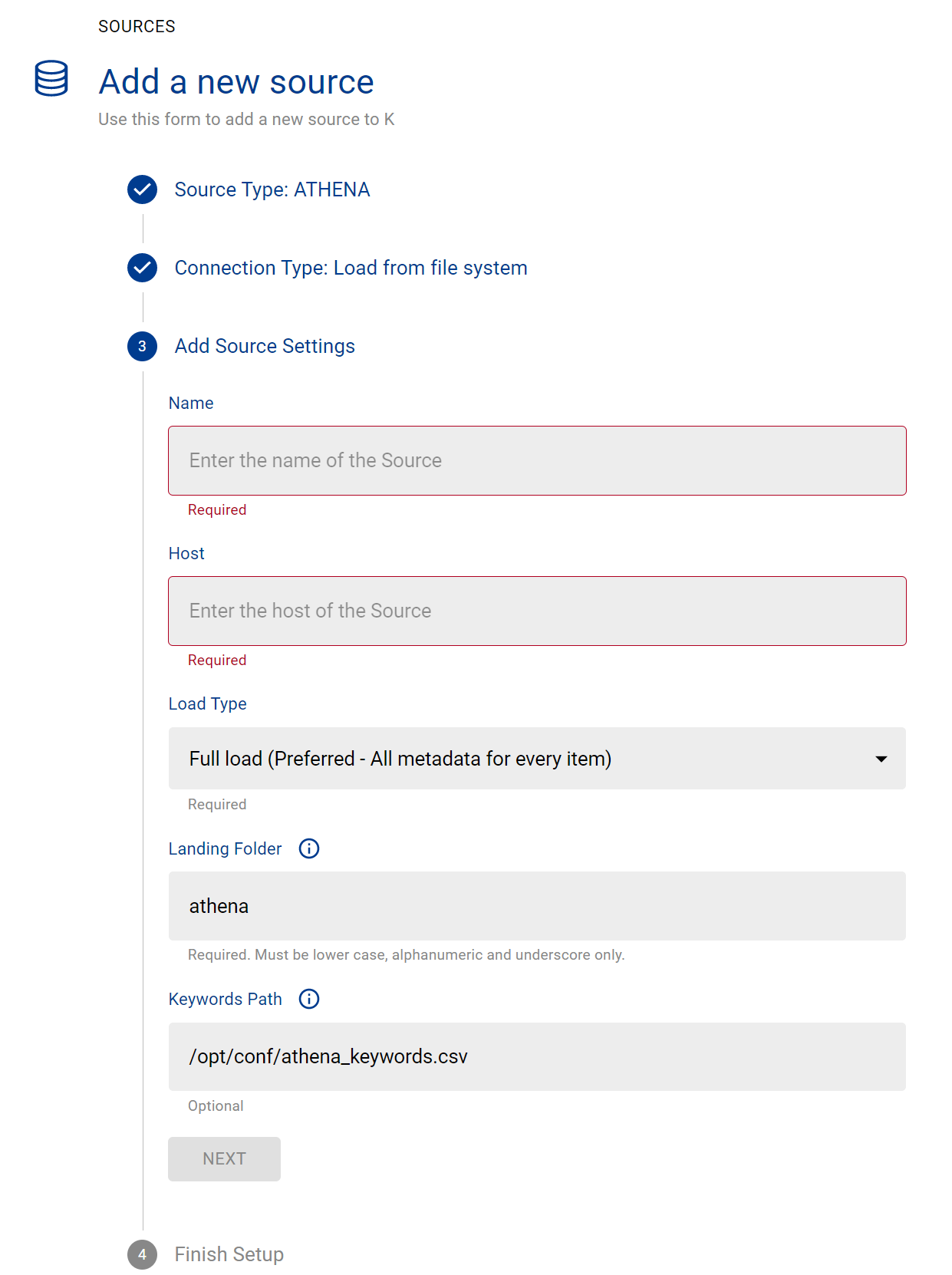

Create an Athena source in K

  • Go to Settings, Select Sources and click Add Source

  • Select “Load from File system” option

  • Give the source a Name - e.g. Glue Production

  • Add the Host name for the Athena Server, recommended to use the convention [AWS ACCOUNT ID]_glue e.g. 3255667_glue

  • Click Finish Setup


Step 3: Getting Access to the Source Landing Directory

Collector Method

When using a Collector you will push metadata to a K landing directory.

To find your landing directory you will need to

  1. Go to Platform Settings - Settings. Note down the value of this setting

    1. If using Azure: storage_azure_storage_account

    2. if using AWS:

      1. storage_root_folder - the AWS s3 bucket

      2. storage_aws_region - the region where the AWS s3 bucket is hosted

  2. Go to Sources - Edit the Source you have configured. Note down the landing directory in the About this Source section

To connect to the landing directory you will need

  • If using Azure: a SAS token to push data to the landing directory. Request this from KADA Support (support@kada.ai)

  • if using AWS:

    • an Access key and Secret. Request this from KADA Support (support@kada.ai)

    • OR provide your IAM role to KADA Support to provision access.


Step 4: Install the Collector

It is recommended to use a python environment such as pyenv or pipenv if you are not intending to install this package at the system level.

Some python packages also have dependencies on the OS level packages, so you may be required to install additional OS packages if the below fails to install.

You can download the Latest Core Library and Athena whl via Platform Settings → SourcesDownload Collectors

Run the following command to install the collector

CODE
pip install kada_collectors_extractors_<version>-none-any.whl

You will also need to install the common library kada_collectors_lib for this collector to function properly.

CODE
pip install kada_collectors_lib-<version>-none-any.whl

Under the covers this uses boto3 and may have OS dependencies see https://boto3.amazonaws.com/v1/documentation/api/latest/guide/quickstart.html


Step 5: Configure the Collector

The collector requires a set of parameters to connect to and extract metadata from Athena

FIELD

FIELD TYPE

DESCRIPTION

EXAMPLE

key

string

Key for the AWS user

“xcvsdsdfsdf”

secret

string

Secret for the AWS user

“sgsdfdsfg”

server

string

This is the host that was onboarded in K for Glue

“43234234_glue”

regions

string

A list of regions in which you have Glue set up and want to extract from

[“ap-southeast-2“]

catalogId

string

This is generally your AWS Account Id

“43234234”

role

string

If your access requires role assumption, place the full arn value here, otherwise leave it blank

“”

output_path

string

Absolute path to the output location where files are to be written

“/tmp/output”

mask

boolean

To enable masking or not

true

compress

boolean

To gzip the output or not

true

These parameters can be added directly into the run or you can use pass the parameters in via a JSON file. The following is an example you can use that is included in the example run code below.

kada_glue_extractor_config.json

CODE
{
    "key": "",
    "secret": "",
    "server": "43234234_glue",
    "regions": ["ap-southeast-2"],
    "catalogId": "43234234",
    "role": "",
    "output_path": "/tmp/output",
    "mask": true,
    "compress": true,
    "meta_only": true
}

Step 6: Run the Collector

The following code is an example of how to run the extractor. You may need to uplift this code to meet any code standards at your organisation.

This can be executed in any python environment where the whl has been installed. It will produce and read a high water mark file from the same directory as the execution called glue_hwm.txt and produce files according to the configuration JSON.

This is the wrapper script: kada_glue_extractor.py

CODE
import os
import argparse
from kada_collectors.extractors.utils import load_config, get_hwm, publish_hwm, get_generic_logger
from kada_collectors.extractors.glue import Extractor

get_generic_logger('root') # Set to use the root logger, you can change the context accordingly or define your own logger

_type = 'glue'
dirname = os.path.dirname(__file__)
filename = os.path.join(dirname, 'kada_{}_extractor_config.json'.format(_type))

parser = argparse.ArgumentParser(description='KADA Glue Extractor.')
parser.add_argument('--config', '-c', dest='config', default=filename, help='Location of the configuration json, default is the config json in the same directory as the script.')
parser.add_argument('--name', '-n', dest='name', default=_type, help='Name of the collector instance.')
args = parser.parse_args()

start_hwm, end_hwm = get_hwm(args.name)

ext = Extractor(**load_config(args.config))
ext.test_connection()
ext.run(**{"start_hwm": start_hwm, "end_hwm": end_hwm})

publish_hwm(_type, end_hwm)



Advance options:

If you wish to maintain your own high water mark files elsewhere you can use the above section’s script as a guide on how to call the extractor. The configuration file is simply the keyword arguments in JSON format. Refer to this document for more information Additional Notes | Storing-HWM-in-another-location

If you are handling external arguments of the runner yourself, you’ll need to consider additional items for the run method. Refer to this document for more information Additional Notes | The-run-method

CODE
from kada_collectors.extractors.snowflake import Extractor

kwargs = {my args} # However you choose to construct your args
hwm_kwrgs = {"start_hwm": "end_hwm": } # The hwm values

ext = Extractor(**kwargs)
ext.run(**hwm_kwrgs)

CODE
class Extractor(key: str=None, secret: str=None, server: str=None, \
    catalogId: str=None, regions: list=['ap-southeast-2'], role: str=None, \
    output_path: str='./output', mask: bool=False, compress: bool=False, \
    meta_only: bool=True) -> None

key: AWS Access Key.
secret: AWS Secret.
server: Glue host that was onboarded on K.
catalogId: The Glue catalog Id which is generally the Account Id.
regions: The regions in which glue exists and should be extracted.
role: AWS Role ARN if required to assume a role.
output_path: full or relative path to where the outputs should go.
compress: To gzip output files or not.
meta_only: To extract metadata only, Glue currently only supports True.


Step 7: Check the Collector Outputs

K Extracts

A set of files (eg metadata, databaselog, linkages, events etc) will be generated. These files will appear in the output_path directory you set in the configuration details

High Water Mark File

A high water mark file is created in the same directory as the execution called glue_hwm.txt and produce files according to the configuration JSON. This file is only produced if you call the publish_hwm method.

If you want prefer file managed hwm, you can edit the location of the hwn by following these instructions Additional Notes | Storing-High-Water-Marks-(HWM)


Step 8: Push the Extracts to K

Once the files have been validated, you can push the files to the K landing directory.

You can use Azure Storage Explorer if you want to initially do this manually. You can push the files using python as well (see Airflow example below)


Example: Using Airflow to orchestrate the Extract and Push to K

Collector Method

The following example is how you can orchestrate the Tableau collector using Airflow and push the files to K hosted on Azure. The code is not expected to be used as-is but as a template for your own DAG.

PY
# built-in
import os

# Installed
from airflow.operators.python_operator import PythonOperator
from airflow.models.dag import DAG
from airflow.operators.dummy import DummyOperator
from airflow.utils.dates import days_ago
from airflow.utils.task_group import TaskGroup

from plugins.utils.azure_blob_storage import AzureBlobStorage

from kada_collectors.extractors.utils import load_config, get_hwm, publish_hwm, get_generic_logger
from kada_collectors.extractors.tableau import Extractor

# To be configed by the customer.
# Note variables may change if using a different object store.
KADA_SAS_TOKEN = os.getenv("KADA_SAS_TOKEN")
KADA_CONTAINER = ""
KADA_STORAGE_ACCOUNT = ""
KADA_LANDING_PATH = "lz/tableau/landing"
KADA_EXTRACTOR_CONFIG = {
    "server_address": "http://tabserver",
    "username": "user",
    "password": "password",
    "sites": [],
    "db_host": "tabserver",
    "db_username": "repo_user",
    "db_password": "repo_password",
    "db_port": 8060,
    "db_name": "workgroup",
    "meta_only": False,
    "retries": 5,
    "dry_run": False,
    "output_path": "/set/to/output/path",
    "mask": True,
    "mapping": {}
}

# To be implemented by the customer.
# Upload to your landing zone storage.
# Change '.csv' to '.csv.gz' if you set compress = true in the config
def upload():
  output = KADA_EXTRACTOR_CONFIG['output_path']
  for filename in os.listdir(output):
      if filename.endswith('.csv'):
        file_to_upload_path = os.path.join(output, filename)

        AzureBlobStorage.upload_file_sas_token(
            client=KADA_SAS_TOKEN,
            storage_account=KADA_STORAGE_ACCOUNT,
            container=KADA_CONTAINER,
            blob=f'{KADA_LANDING_PATH}/{filename}',
            local_path=file_to_upload_path
        )

with DAG(dag_id="taskgroup_example", start_date=days_ago(1)) as dag:

    # To be implemented by the customer.
    # Retrieve the timestamp from the prior run
    start_hwm = 'YYYY-MM-DD HH:mm:SS'
    end_hwm = 'YYYY-MM-DD HH:mm:SS' # timestamp now

    ext = Extractor(**KADA_EXTRACTOR_CONFIG)

    start = DummyOperator(task_id="start")

    with TaskGroup("taskgroup_1", tooltip="extract tableau and upload") as extract_upload:
        task_1 = PythonOperator(
            task_id="extract_tableau",
            python_callable=ext.run,
            op_kwargs={"start_hwm": start_hwm, "end_hwm": end_hwm},
            provide_context=True,
        )

        task_2 = PythonOperator(
            task_id="upload_extracts",
            python_callable=upload,
            op_kwargs={},
            provide_context=True,
        )

        # To be implemented by the customer.
        # Timestamp needs to be saved for next run
        task_3 = DummyOperator(task_id='save_hwm')

    end = DummyOperator(task_id='end')

    start >> extract_upload >> end

JavaScript errors detected

Please note, these errors can depend on your browser setup.

If this problem persists, please contact our support.
