Oracle Database (via Collector method) - v.3.2.0

About Collectors

Collector Method

Collectors are extractors that are developed and managed by you (A customer of K).

KADA provides python libraries that customers can use to quickly deploy a Collector.

Why you should use a Collector

There are several reasons why you may use a collector vs the direct connect extractor:

  1. You are using the KADA SaaS offering and it cannot connect to your sources due to firewall restrictions

  2. You want to push metadata to KADA rather than allow it pull data for Security reasons

  3. You want to inspect the metadata before pushing it to K

Using a collector requires you to manage

  1. Deploying and orchestrating the extract code

  2. Managing a high water mark so the extract only pull the latest metadata

  3. Storing and pushing the extracts to your K instance.


Pre-requisites

Collector Server Minimum Requirements

For the collector to operate effectively, it will need to be deployed on a server with the below minimum specifications:

  • CPU: 2 vCPU

  • Memory: 8GB

  • Storage: 30GB (depends on historical data extracted)

  • OS: unix distro e.g. RHEL preferred but can also work with Windows Server.

  • Python 3.10.x or later

  • Access to K landing directory

Oracle Database requirements

  • Access to Oracle

  • Oracle user with read access to following tables

    • dba_hist_active_sess_history

    • dba_hist_snapshot

    • dba_users

    • dba_hist_sqltext

    • dba_mviews

    • dba_views

    • dba_procedures

    • dba_constraints

    • dba_cons_columns

    • dba_tab_columns

    • dba_audit_trail (If you do not have Auditing configured, speak to KADA about it.)

    • dba_tab_privs

    • dba_role_privs

    • dba_roles

    • proxy_users_and_roles

    • dba_synonyms

Check the MAX_STRING_SIZE option in the database , if it is not of type EXTENDED and you are unable to change it, you will need to alter the DDL_SQL used by the extractor and change from 32767 to the maximum supported value in MAX_STRING_SIZE instead. If this is not aligned you will see an ORA-00910: specified length is too long for its datatype will be thrown.

You have the option to create a wallet if you are using Oracle Cloud for authentication, otherwise this integration will use a username and password.

If you are using TNSNAMES ensure the tnsnames.ora file is up to date with the correct entries to be referenced.

You can connect 3 ways.

  1. Host/servicename

  2. TNSNAME in the tnsnames.ora file

  3. A connection descriptor


Step 1: Create the Source in K

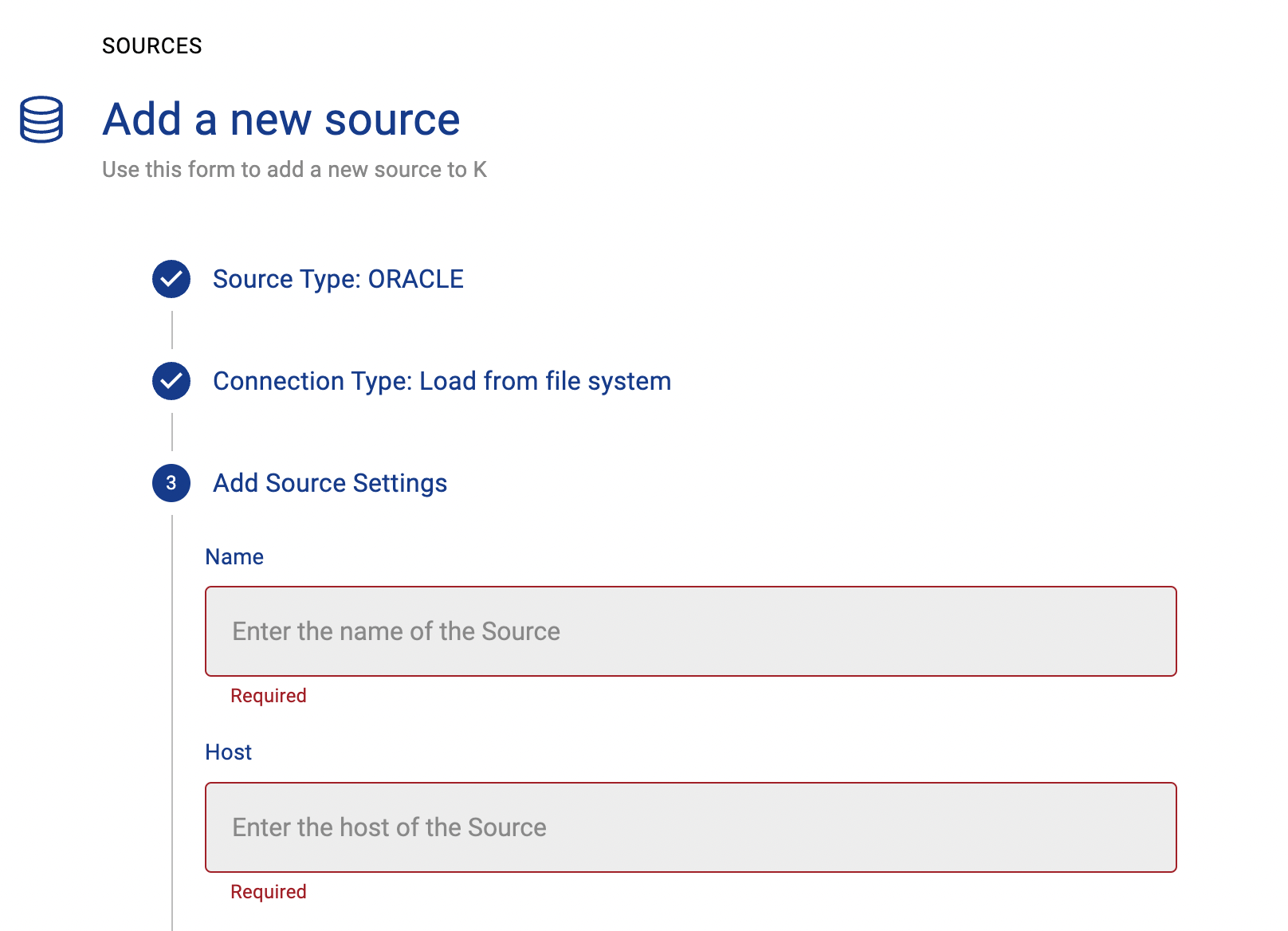

Create a Oracle source in K

  • Go to Settings, Select Sources and click Add Source

  • Select “Load from File” option

  • Give the source a Name - e.g. Oracle Production

  • Add the Host name for the Oracle Server

  • Click Finish Setup


Step 2: Getting Access to the Source Landing Directory

Collector Method

When using a Collector you will push metadata to a K landing directory.

To find your landing directory you will need to

  1. Go to Platform Settings - Settings. Note down the value of this setting

    1. If using Azure: storage_azure_storage_account

    2. if using AWS:

      1. storage_root_folder - the AWS s3 bucket

      2. storage_aws_region - the region where the AWS s3 bucket is hosted

  2. Go to Sources - Edit the Source you have configured. Note down the landing directory in the About this Source section

To connect to the landing directory you will need

  • If using Azure: a SAS token to push data to the landing directory. Request this from KADA Support (support@kada.ai)

  • if using AWS:

    • an Access key and Secret. Request this from KADA Support (support@kada.ai)

    • OR provide your IAM role to KADA Support to provision access.


Step 3: Install the Collector

It is recommended to use a python environment such as pyenv or pipenv if you are not intending to install this package at the system level.

Some python packages also have dependencies on the OS level packages, so you may be required to install additional OS packages if the below fails to install.

You can download the latest Core Library and whl via Platform Settings → SourcesDownload Collectors

Run the following command to install the collector.

CODE
pip install kada_collectors_extractors_<version>-none-any.whl

You will also need to install the common library kada_collectors_lib for this collector to function properly.

CODE
pip install kada_collectors_lib-<version>-none-any.whl

You may require an ODBC package for the OS to be installed as well as an oracle client library package if do you not have one already, see https://www.oracle.com/au/database/technologies/instant-client.html

If you already have an oracle client library installed, download the OCI (Basic Package) relevant to your OS.


Step 4: Configure the Collector

The collector requires a set of parameters to connect to and extract metadata from Oracle

FIELD

FIELD TYPE

DESCRIPTION

EXAMPLE

username

string

Username to log into Oracle

“myuser”

password

string

Password to log into Oracle



dsn

string

Datasource Name for Oracle, this can be one of the following forms

<tnsname>
<host/servicename>

“preprod”

local.example.com/oraservice”

oracle_client_path

string

Full path to the location of the Oracle Client libraries

“/tmp/drivers/lib/oracleinstantclient_11_9”

oracle_major_version

string

We currently support 11g and 12c and 12c+ for 12c greater, 11g has different SQL scripts so be very careful when setting this value

12c

database_name

string

The database name as onboarded in K, it is important that it matches so the objects are created correctly

“mykdatabase”

host_name

string

The host name as onboarded in K, it is important that it matches so the objects are created correctly

“mykhost”

wallet_path

string

If you use Oracle wallets, then this is the location of the wallet, ensure that the sqlnet.ora file references the wallet locaton correctly.

The DIRECTORY location needs to change to the fully qualified path to the wallet itself (the unzipped wallet location). By default the value is ?/network/admin this should be updated to match the wallet_path value

If you do not use wallets, leave this blank.

“/tmp/drivers/oracle/wallet”

meta_only

boolean

If you do not want to enable auditing, option to extract meta only

false

output_path

string

Absolute path to the output location where files are to be written

“/tmp/output”

mask

boolean

To enable masking or not

true

compress

boolean

To gzip the output or not

true

These parameters can be added directly into the run or you can use pass the parameters in via a JSON file. The following is an example you can use that is included in the example run code below.

kada_oracle_extractor_config.json

JSON
{
    "username": "",
    "password": "",
    "dsn": "",
    "oracle_client_path": "",
    "oracle_major_version": "12c",
    "database_name": "",
    "host_name": "",
    "wallet_path": "",
    "meta_only": false,
    "output_path": "/tmp/output",
    "mask": true,
    "compress": true
}

Step 5: Run the Collector

The following code is an example of how to run the extractor. You may need to uplift this code to meet any code standards at your organisation.

This can be executed in any python environment where the whl has been installed.

This code sample uses the kada_oracle_extractor_config.json for handling the configuration details

PY
import os
import argparse
from kada_collectors.extractors.utils import load_config, get_hwm, publish_hwm, get_generic_logger
from kada_collectors.extractors.oracle import Extractor

get_generic_logger('root') # Set to use the root logger, you can change the context accordingly or define your own logger

_type = 'oracle'
dirname = os.path.dirname(__file__)
filename = os.path.join(dirname, 'kada_{}_extractor_config.json'.format(_type))

parser = argparse.ArgumentParser(description='KADA Oracle Extractor.')
parser.add_argument('--config', '-c', dest='config', default=filename, help='Location of the configuration json, default is the config json in the same directory as the script.')
parser.add_argument('--name', '-n', dest='name', default=_type, help='Name of the collector instance.')
args = parser.parse_args()

start_hwm, end_hwm = get_hwm(args.name)

ext = Extractor(**load_config(args.config))
ext.test_connection()
ext.run(**{"start_hwm": start_hwm, "end_hwm": end_hwm})

publish_hwm(_type, end_hwm)

Advance options:

If you wish to maintain your own high water mark files elsewhere you can use the above section’s script as a guide on how to call the extractor. The configuration file is simply the keyword arguments in JSON format. Refer to this document for more information Collector Integration General Notes | Storing-HWM-in-another-location

If you are handling external arguments of the runner yourself, you’ll need to consider additional items for the run method. Refer to this document for more information Collector Integration General Notes | The-run-method


Step 6: Check the Collector Outputs

K Extracts

A set of files (eg metadata, databaselog, linkages, events etc) will be generated. These files will appear in the output_path directory you set in the configuration details

High Water Mark File

A high water mark file is created in the same directory as the execution called oracle_hwm.txt and produce files according to the configuration JSON. This file is only produced if you call the publish_hwm method.


Step 7: Push the Extracts to K

Once the files have been validated, you can push the files to the K landing directory.

You can use Azure Storage Explorer if you want to initially do this manually. You can push the files using python as well (see Airflow example below)


Example: Using Airflow to orchestrate the Extract and Push to K

Collector Method

The following example is how you can orchestrate the Tableau collector using Airflow and push the files to K hosted on Azure. The code is not expected to be used as-is but as a template for your own DAG.

PY
# built-in
import os

# Installed
from airflow.operators.python_operator import PythonOperator
from airflow.models.dag import DAG
from airflow.operators.dummy import DummyOperator
from airflow.utils.dates import days_ago
from airflow.utils.task_group import TaskGroup

from plugins.utils.azure_blob_storage import AzureBlobStorage

from kada_collectors.extractors.utils import load_config, get_hwm, publish_hwm, get_generic_logger
from kada_collectors.extractors.tableau import Extractor

# To be configed by the customer.
# Note variables may change if using a different object store.
KADA_SAS_TOKEN = os.getenv("KADA_SAS_TOKEN")
KADA_CONTAINER = ""
KADA_STORAGE_ACCOUNT = ""
KADA_LANDING_PATH = "lz/tableau/landing"
KADA_EXTRACTOR_CONFIG = {
    "server_address": "http://tabserver",
    "username": "user",
    "password": "password",
    "sites": [],
    "db_host": "tabserver",
    "db_username": "repo_user",
    "db_password": "repo_password",
    "db_port": 8060,
    "db_name": "workgroup",
    "meta_only": False,
    "retries": 5,
    "dry_run": False,
    "output_path": "/set/to/output/path",
    "mask": True,
    "mapping": {}
}

# To be implemented by the customer.
# Upload to your landing zone storage.
# Change '.csv' to '.csv.gz' if you set compress = true in the config
def upload():
  output = KADA_EXTRACTOR_CONFIG['output_path']
  for filename in os.listdir(output):
      if filename.endswith('.csv'):
        file_to_upload_path = os.path.join(output, filename)

        AzureBlobStorage.upload_file_sas_token(
            client=KADA_SAS_TOKEN,
            storage_account=KADA_STORAGE_ACCOUNT,
            container=KADA_CONTAINER,
            blob=f'{KADA_LANDING_PATH}/{filename}',
            local_path=file_to_upload_path
        )

with DAG(dag_id="taskgroup_example", start_date=days_ago(1)) as dag:

    # To be implemented by the customer.
    # Retrieve the timestamp from the prior run
    start_hwm = 'YYYY-MM-DD HH:mm:SS'
    end_hwm = 'YYYY-MM-DD HH:mm:SS' # timestamp now

    ext = Extractor(**KADA_EXTRACTOR_CONFIG)

    start = DummyOperator(task_id="start")

    with TaskGroup("taskgroup_1", tooltip="extract tableau and upload") as extract_upload:
        task_1 = PythonOperator(
            task_id="extract_tableau",
            python_callable=ext.run,
            op_kwargs={"start_hwm": start_hwm, "end_hwm": end_hwm},
            provide_context=True,
        )

        task_2 = PythonOperator(
            task_id="upload_extracts",
            python_callable=upload,
            op_kwargs={},
            provide_context=True,
        )

        # To be implemented by the customer.
        # Timestamp needs to be saved for next run
        task_3 = DummyOperator(task_id='save_hwm')

    end = DummyOperator(task_id='end')

    start >> extract_upload >> end
