SSRS (Collector method) - v2.0.0

About Collectors

Collectors are extractors that are developed and managed by you (A customer of K).

KADA provides python libraries that customers can use to quickly deploy a Collector.

Why you should use a Collector

There are several reasons why you may use a collector vs the direct connect extractor:

  1. You are using the KADA SaaS offering and it cannot connect to your sources due to firewall restrictions

  2. You want to push metadata to KADA rather than allow it pull data for Security reasons

  3. You want to inspect the metadata before pushing it to K

Using a collector requires you to manage

  1. Deploying and orchestrating the extract code

  2. Managing a high water mark so the extract only pull the latest metadata

  3. Storing and pushing the extracts to your K instance.


Pre-requisites

  • Python 3.6 - 3.10

  • Support SQL SSRS 2016+ where the database is called ReportServer$RS

    • if your SSRS databases differs from this, please Advise KADA of the SSRS version and what the database is called.

    • The collector will need access to the underlying SQLServer Database with permissions to read the following tables:

      • ReportServer$RS.DBO.CATALOG

      • ReportServer$RS.DBO.EXECUTIONLOG3

      • ReportServer$RS.DBO.USERS

  • Access to K landing directory

Known SSRS Collector limitations

The following connection types are NOT currently supported:

  1. Teradata IP Reference Only Data Source

  2. SAP NetWeaver Data Source

  3. XML Data Source

  4. Web Service Data Source

  5. XML Document Data Source

  6. Sharepoint Data Source



The following catalog item types are currently NOT supported:

  1. Linked Reports

  2. Files

  3. Power BI Desktop Files

  4. Report Models

Parameter resolution is not supported.

SSAS query syntax is not supported

Some TSQL syntax is not support. These are mostly statements that contain not standard ANSI SQL constructs. Examples include:

  1. Variables (DECLARE)

  2. Flow control (IF BEGIN .. )


Step 1: Create the Source in K

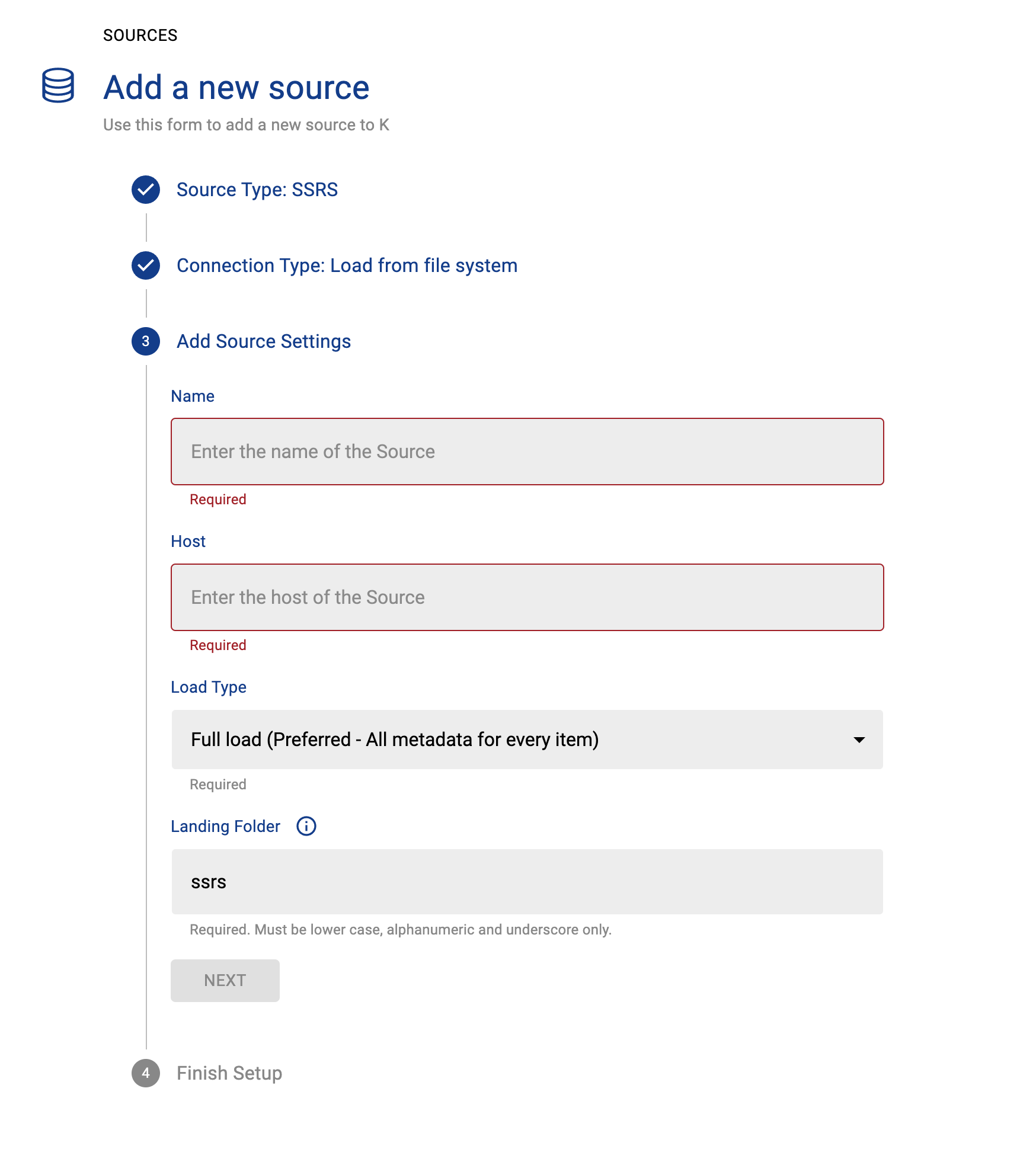

Create a SSRS source in K

  • Go to Settings, Select Sources and click Add Source

  • Select “Load from file system” option

  • Give the source a Name - e.g. SSRS Production

  • Add the Host name for the SSRS Server

  • Click Finish Setup


Step 2: Getting Access to the Source Landing Directory

Collector Method

When using a Collector you will push metadata to a K landing directory.

To find your landing directory you will need to

  1. Go to Platform Settings - Settings. Note down the value of this setting

    1. If using Azure: storage_azure_storage_account

    2. if using AWS:

      1. storage_root_folder - the AWS s3 bucket

      2. storage_aws_region - the region where the AWS s3 bucket is hosted

  2. Go to Sources - Edit the Source you have configured. Note down the landing directory in the About this Source section

To connect to the landing directory you will need

  • If using Azure: a SAS token to push data to the landing directory. Request this from KADA Support (support@kada.ai)

  • if using AWS:

    • an Access key and Secret. Request this from KADA Support (support@kada.ai)

    • OR provide your IAM role to KADA Support to provision access.


Step 3: Install the Collector

It is recommended to use a python environment such as pyenv or pipenv if you are not intending to install this package at the system level.

Some python packages also have dependencies on the OS level packages, so you may be required to install additional OS packages if the below fails to install.

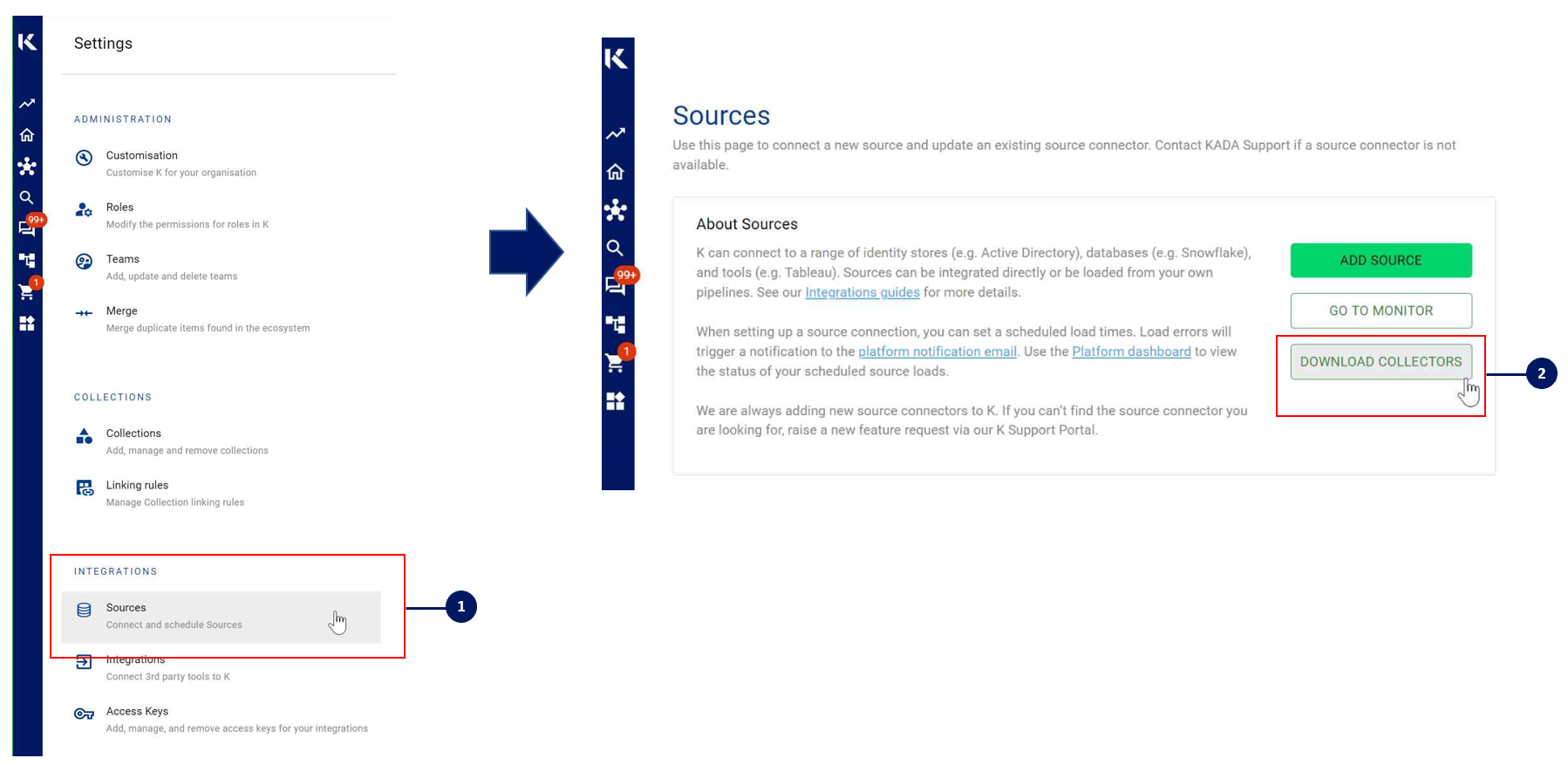

You can download the Latest Core Library and whl via Platform Settings → SourcesDownload Collectors

Run the following command to install the collector

CODE
pip install kada_collectors_extractors_ssrs-2.0.0-py3-none-any.whl

Step 4: Configure the Collector

The collector requires a set of parameters to connect to and extract metadata from SSRS.

FIELD

FIELD TYPE

DESCRIPTION

EXAMPLE

server

string

SQLServer server

“10.1.18.19”

username

string

Username to log into the SQLServer account

“myuser”

password

string

Password to log into the SQLServer account



ssrs_database

string

The database which SSRS exists

ReportServer$RS

mapping

JSON

Mapping file of data source names against the onboarded host and database name in K

Assuming I have a “myDSN” data source name in powerbi, I’ll map it to host “myhost” and database “mydatabase” onboarded in K, snowflake type references are handled automatically

CODE
{
        "myDSN": {
            "host": "myhost",
            "database": "mydatabase"
        }
    }

driver

string

This is the ODBC driver, generally its ODBC Driver 17 for SQL Server, if you another driver installed please use that instead

“ODBC Driver 17 for SQL Server”

output_path

string

Absolute path to the output location where files are to be written

“/tmp/output”

mask

boolean

To enable masking or not

true

These parameters can be added directly into the run or you can use pass the parameters in via a JSON file. The following is an example you can use that is included in the example run code below.

kada_ssrs_extractor_config.json

JSON
{
    "server": "",
    "username": "",
    "password": "",
    "ssrs_database": "",
    "mapping": {},
    "driver": "ODBC Driver 17 for SQL Server",
    "output_path": "/tmp/output",
    "mask": true
}

Step 5: Run the Collector

The following code is an example of how to run the extractor. You may need to uplift this code to meet any code standards at your organisation.

This can be executed in any python environment where the whl has been installed.

This code sample uses the kada_ssrs_extractor_config.json for handling the configuration details

PY
import os
import argparse
from kada_collectors.extractors.utils import load_config, get_hwm, publish_hwm, get_generic_logger
from kada_collectors.extractors.ssrs import Extractor

get_generic_logger('root') # Set to use the root logger, you can change the context accordingly or define your own logger

_type = 'ssrs'
dirname = os.path.dirname(__file__)
filename = os.path.join(dirname, 'kada_{}_extractor_config.json'.format(_type))

parser = argparse.ArgumentParser(description='KADA SSRS Extractor.')
parser.add_argument('--config', '-c', dest='config', default=filename, help='Location of the configuration json, default is the config json in the same directory as the script.')
args = parser.parse_args()

start_hwm, end_hwm = get_hwm(_type)

ext = Extractor(**load_config(args.config))
ext.test_connection()
ext.run(**{"start_hwm": start_hwm, "end_hwm": end_hwm})

publish_hwm(_type, end_hwm)

This code will produce and read a high water mark file from the same directory as the execution called ssrs_hwm.txt and produce files according to the configuration JSON.

Advanced Usage

If you wish to maintain your own high water mark files else where you can use the above section’s script as a guide on how to call the extractor. The configuration file is simply the keyword arguments in JSON format.

If you are handling external arguments of the runner yourself, you’ll need to consider the following for the run method Collector Integration General Notes | Extractor-run-method

PY
from kada_collectors.extractors.ssrs import Extractor

kwargs = {my args} # However you choose to construct your args
hwm_kwrgs = {"start_hwm": "end_hwm": } # The hwm values

ext = Extractor(**kwargs)
ext.run(**hwm_kwrgs)

PY
class Extractor(username: str = None, password: str = None, server: str = None, \
  driver: str = None, ssrs_database: str=None, mapping: dict = {}, \
  output_path: str = './output', mask: bool = False) -> None

username: username to sign into sqlserver
password: password to sign into sqlserver
ssrs_database: Name of the SSRS database of the sqlserver host
server: sqlserver host
driver: sqlserver driver name
mapping: Dict of DNS to database and hostnames
output_path: full or relative path to where the outputs should go
mask: To mask the META/DATABASE_LOG files or notoutput_path: full or relative path to where the outputs should go
mask: To mask the META/DATABASE_LOG files or not


Step 6: Check the Collector Outputs

K Extracts

A set of files (eg metadata, databaselog, linkages, events etc) will be generated. These files will appear in the output_path directory you set in the configuration details

High Water Mark File

A high water mark file is created in the same directory as the execution called ssrs_hwm.txt and produce files according to the configuration JSON. This file is only produced if you call the publish_hwm method. Collector Integration General Notes | Storing-the-HWM-using-the-K-Landing-Area


Step 7: Push the Extracts to K

Once the files have been validated, you can push the files to the K landing directory.

You can use Azure Storage Explorer if you want to initially do this manually. You can push the files using python as well (see Airflow example below)


Example: Using Airflow to orchestrate the Extract and Push to K

PY
# built-in
import os

# Installed
from airflow.operators.python_operator import PythonOperator
from airflow.models.dag import DAG
from airflow.operators.dummy import DummyOperator
from airflow.utils.dates import days_ago
from airflow.utils.task_group import TaskGroup

from plugins.utils.azure_blob_storage import AzureBlobStorage

from kada_collectors.extractors.utils import load_config, get_hwm, publish_hwm, get_generic_logger
from kada_collectors.extractors.tableau import Extractor

# To be configed by the customer.
# Note variables may change if using a different object store.
KADA_SAS_TOKEN = os.getenv("KADA_SAS_TOKEN")
KADA_CONTAINER = ""
KADA_STORAGE_ACCOUNT = ""
KADA_LANDING_PATH = "lz/tableau/landing"
KADA_EXTRACTOR_CONFIG = {
    "server_address": "http://tabserver",
    "username": "user",
    "password": "password",
    "sites": [],
    "db_host": "tabserver",
    "db_username": "repo_user",
    "db_password": "repo_password",
    "db_port": 8060,
    "db_name": "workgroup",
    "meta_only": False,
    "retries": 5,
    "dry_run": False,
    "output_path": "/set/to/output/path",
    "mask": True,
    "mapping": {}
}

# To be implemented by the customer.
# Upload to your landing zone storage.
def upload():
  output = KADA_EXTRACTOR_CONFIG['output_path']
  for filename in os.listdir(output):
      if filename.endswith('.csv'):
        file_to_upload_path = os.path.join(output, filename)

        AzureBlobStorage.upload_file_sas_token(
            client=KADA_SAS_TOKEN,
            storage_account=KADA_STORAGE_ACCOUNT,
            container=KADA_CONTAINER,
            blob=f'{KADA_LANDING_PATH}/{filename}',
            local_path=file_to_upload_path
        )

with DAG(dag_id="taskgroup_example", start_date=days_ago(1)) as dag:

    # To be implemented by the customer.
    # Retrieve the timestamp from the prior run
    start_hwm = 'YYYY-MM-DD HH:mm:SS'
    end_hwm = 'YYYY-MM-DD HH:mm:SS' # timestamp now

    ext = Extractor(**KADA_EXTRACTOR_CONFIG)

    start = DummyOperator(task_id="start")

    with TaskGroup("taskgroup_1", tooltip="extract tableau and upload") as extract_upload:
        task_1 = PythonOperator(
            task_id="extract_tableau",
            python_callable=ext.run,
            op_kwargs={"start_hwm": start_hwm, "end_hwm": end_hwm},
            provide_context=True,
        )

        task_2 = PythonOperator(
            task_id="upload_extracts",
            python_callable=upload,
            op_kwargs={},
            provide_context=True,
        )

        # To be implemented by the customer.
        # Timestamp needs to be saved for next run
        task_3 = DummyOperator(task_id='save_hwm')

    end = DummyOperator(task_id='end')

    start >> extract_upload >> end
