SAS (Collector method) - v1.0.0

About Collectors

Collectors are extractors that are developed and managed by you (a customer of K).

KADA provides python libraries that customers can use to quickly deploy a Collector.

Why you should use a Collector

There are several reasons why you may use a collector vs the direct connect extractor:

1. You are using the KADA SaaS offering and it cannot connect to your sources due to firewall restrictions

2. You want to push metadata to KADA rather than allow it to pull data for security reasons

3. You want to inspect the metadata before pushing it to K

Using a collector requires you to manage:

1. Deploying and orchestrating the extract code

2. Managing a high water mark so the extract only pulls the latest metadata

3. Storing and pushing the extracts to your K instance

Pre-requisites

Collector Server Minimum Requirements

For the collector to operate effectively, it will need to be deployed on a server with the below minimum specifications:

• CPU: 2 vCPU

• Memory: 8GB

• Storage: 30GB (depends on historical data extracted)

• OS: unix distro e.g. RHEL preferred but can also work with Windows Server

• Python 3.10.x or later

• Access to K landing directory

SAS Requirements

SAS Project Logs

In SAS Studio/Enterprise Guide

If using SAS GUI (Studio/Enterprise Guide), KADA utilises the Project Logs from your SAS process flows. If logs have not been enabled - follow the Official SAS Documentation to enable Project Logs.

The log window appears automatically alongside your code and results. You can:

• Click the "Log" tab to view the full log

• Right-click in the log window and select "Save As" to export

In Base SAS

• The log window is visible by default in the main interface

• Use File > Save As to save the log

• Or use PROC PRINTTO to redirect logs to a file - PROC PRINTTO

Step 1: Create the Source in K

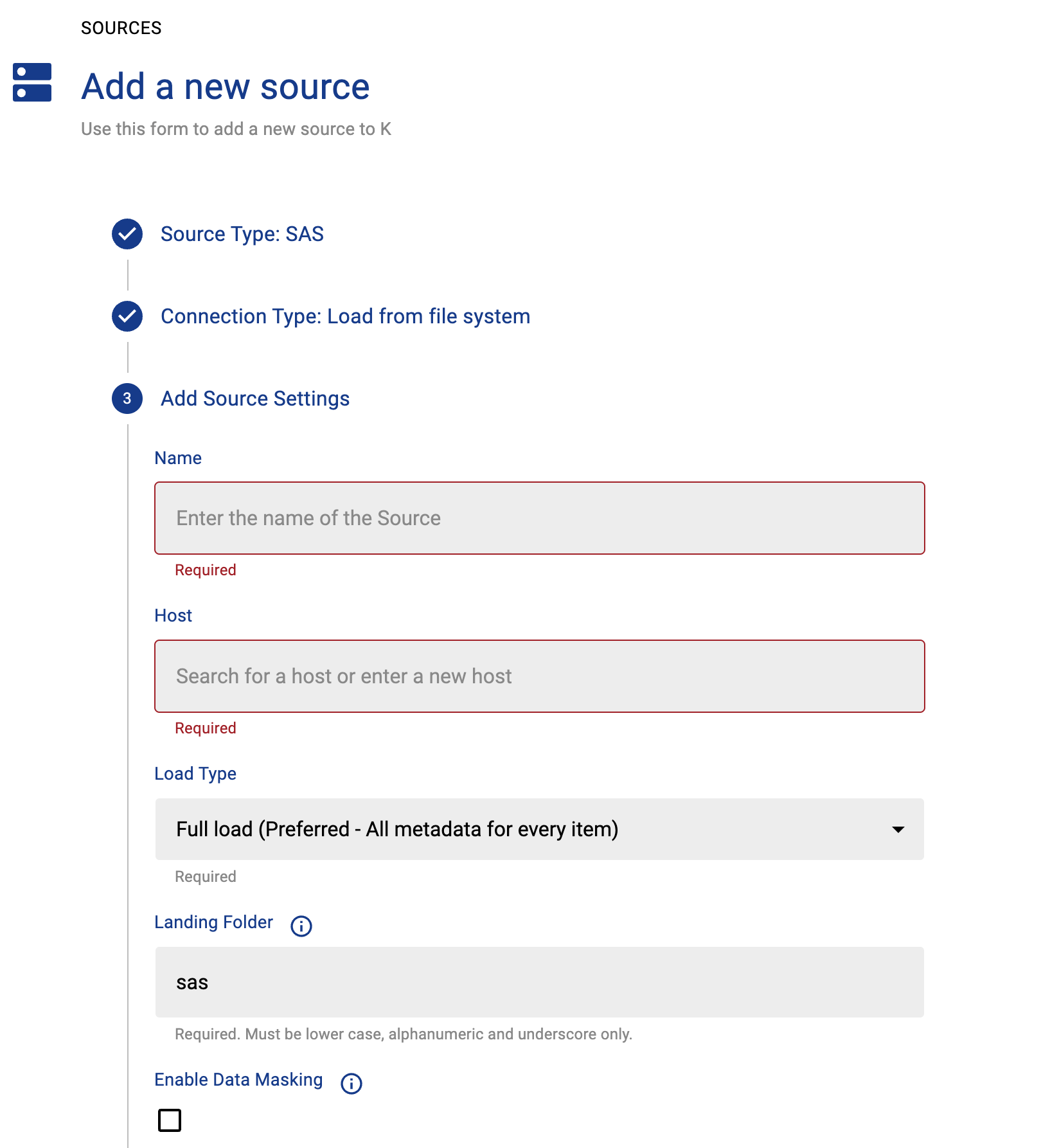

Create a SAS source in K

• Go to Settings, Select Sources and click Add Source

• Select SAS as the Source Type

• Select “Load from File” option



• Give the source a Name - e.g. SAS Production

• Add the Host name for the SAS instance

• Click Finish Setup

Step 2: Getting Access to the Source Landing Directory

When using a Collector you will push metadata to a K landing directory.

To find your landing directory you will need to:

1. Go to Platform Settings - Settings. Note down the value of this setting:

   • If using Azure: storage_azure_storage_account

   • If using AWS:

     • storage_root_folder - the AWS s3 bucket

     • storage_aws_region - the region where the AWS s3 bucket is hosted

2. Go to Sources - Edit the Source you have configured. Note down the landing directory in the About this Source section.

To connect to the landing directory you will need:

• If using Azure: a SAS token to push data to the landing directory. Request this from KADA Support (support@kada.ai)

• If using AWS:

  • An Access key and Secret. Request this from KADA Support (support@kada.ai)

  • OR provide your IAM role to KADA Support to provision access.

Step 3: Install the Collector

It is recommended to use a python environment such as pyenv or pipenv if you are not intending to install this package at the system level.

Some python packages also have dependencies on the OS level packages, so you may be required to install additional OS packages if the below fails to install.

You can download the latest Core Library and whl via Platform Settings → Sources → Download Collectors

Run the following command to install the collector

pip install kada_collectors_extractors_<version>-none-any.whl

You will also need to install the common library kada_collectors_lib for this collector to function properly.

pip install kada_collectors_lib-<version>-none-any.whl

Step 4: Configure the Collector

The collector requires a set of parameters to connect to and extract metadata from Tableau.

{
        "myDSN": {
            "host": "myhost",
            "database": "mydatabase"
        }
    }

These parameters can be added directly into the run or you can use pass the parameters in via a JSON file. The following is an example you can use that is included in the example run code below.

kada_sas_extractor.json

{
    "output_path": "",
    "folder_path": "",
    "dry_run": false,
    "compress": false,
    "mask": false,
    "pid_logs": false.
    "mappin": {}
}

Step 7: Run the Collector

The following code is an example of how to run the extractor. You may need to uplift this code to meet any code standards at your organisation.

This can be executed in any python environment where the whl has been installed.

This is the wrapper script: kada_sas_extractor.py

import os
import argparse
from kada_collectors.extractors.utils import load_config, get_hwm, publish_hwm, get_generic_logger
from kada_collectors.extractors.sas import Extractor

get_generic_logger('root') # Set to use the root logger, you can change the context accordingly or define your own logger

_type = 'sas'
dirname = os.path.dirname(__file__)
filename = os.path.join(dirname, 'kada_{}_extractor_config.json'.format(_type))

parser = argparse.ArgumentParser(description='KADA SAS Extractor.')
parser.add_argument('--config', '-c', dest='config', default=filename, help='Location of the configuration json, default is the config json in the same directory as the script.')
parser.add_argument('--name', '-n', dest='name', default=_type, help='Name of the collector instance.')
args = parser.parse_args()

start_hwm, end_hwm = get_hwm(args.name)

ext = Extractor(**load_config(args.config))

ext.run(**{"start_hwm": start_hwm, "end_hwm": end_hwm})

publish_hwm(args.name, end_hwm)

Step 8: Check the Collector Outputs

K Extracts

A set of files (eg metadata, linkages, events etc) will be generated. These files will appear in the output_path directory you set in the configuration details

High Water Mark File

A high water mark file is created in the same directory as the execution called sas_hwm.txt and produce files according to the configuration JSON. This file is only produced if you call the publish_hwm method.

Refer to Collector Integration General Notes for more information.

Step 9: Push the Extracts to K

Once the files have been validated, you can push the files to the K landing directory.

You can use Azure Storage Explorer if you want to initially do this manually. You can push the files using python as well (see Airflow example below)

Example: Using Airflow to orchestrate the Extract and Push to K

# built-in
import os

# Installed
from airflow.operators.python_operator import PythonOperator
from airflow.models.dag import DAG
from airflow.operators.dummy import DummyOperator
from airflow.utils.dates import days_ago
from airflow.utils.task_group import TaskGroup

from plugins.utils.azure_blob_storage import AzureBlobStorage

from kada_collectors.extractors.utils import load_config, get_hwm, publish_hwm, get_generic_logger
from kada_collectors.extractors.tableau import Extractor

# To be configed by the customer.
# Note variables may change if using a different object store.
KADA_SAS_TOKEN = os.getenv("KADA_SAS_TOKEN")
KADA_CONTAINER = ""
KADA_STORAGE_ACCOUNT = ""
KADA_LANDING_PATH = "lz/tableau/landing"
KADA_EXTRACTOR_CONFIG = {
    "server_address": "http://tabserver",
    "username": "user",
    "password": "password",
    "sites": [],
    "db_host": "tabserver",
    "db_username": "repo_user",
    "db_password": "repo_password",
    "db_port": 8060,
    "db_name": "workgroup",
    "meta_only": False,
    "retries": 5,
    "dry_run": False,
    "output_path": "/set/to/output/path",
    "mask": True,
    "mapping": {}
}

# To be implemented by the customer.
# Upload to your landing zone storage.
def upload():
  output = KADA_EXTRACTOR_CONFIG['output_path']
  for filename in os.listdir(output):
      if filename.endswith('.csv'):
        file_to_upload_path = os.path.join(output, filename)

        AzureBlobStorage.upload_file_sas_token(
            client=KADA_SAS_TOKEN,
            storage_account=KADA_STORAGE_ACCOUNT,
            container=KADA_CONTAINER,
            blob=f'{KADA_LANDING_PATH}/{filename}',
            local_path=file_to_upload_path
        )

with DAG(dag_id="taskgroup_example", start_date=days_ago(1)) as dag:

    # To be implemented by the customer.
    # Retrieve the timestamp from the prior run
    start_hwm = 'YYYY-MM-DD HH:mm:SS'
    end_hwm = 'YYYY-MM-DD HH:mm:SS' # timestamp now

    ext = Extractor(**KADA_EXTRACTOR_CONFIG)

    start = DummyOperator(task_id="start")

    with TaskGroup("taskgroup_1", tooltip="extract tableau and upload") as extract_upload:
        task_1 = PythonOperator(
            task_id="extract_tableau",
            python_callable=ext.run,
            op_kwargs={"start_hwm": start_hwm, "end_hwm": end_hwm},
            provide_context=True,
        )

        task_2 = PythonOperator(
            task_id="upload_extracts",
            python_callable=upload,
            op_kwargs={},
            provide_context=True,
        )

        # To be implemented by the customer.
        # Timestamp needs to be saved for next run
        task_3 = DummyOperator(task_id='save_hwm')

    end = DummyOperator(task_id='end')

    start >> extract_upload >> end
