Hevo (via Direct Connect method)

This page will walkthrough the setup of Hevo in K using the direct connect method.

Integration details

Scope

Included

Comments

Metadata

YES


Lineage

YES


Usage

NO

Usage currently not captured for pipeline runs

Sensitive Data Scanner

N/A


Known limitations

  • Not all sources and destinations are currently covered. A future improvement is planned to cover sources & destinations generically.

  • Current sources implemented:

    • AZURE_SQL

    • BIGQUERY

    • FTP

    • JIRA_CLOUD

    • MS_SQL

    • RESTAPI

  • Current destinations supported:

    • SNOWFLAKE

Step 1) Create an API Key

  • See the Hevo API documentation for creating an API Key.

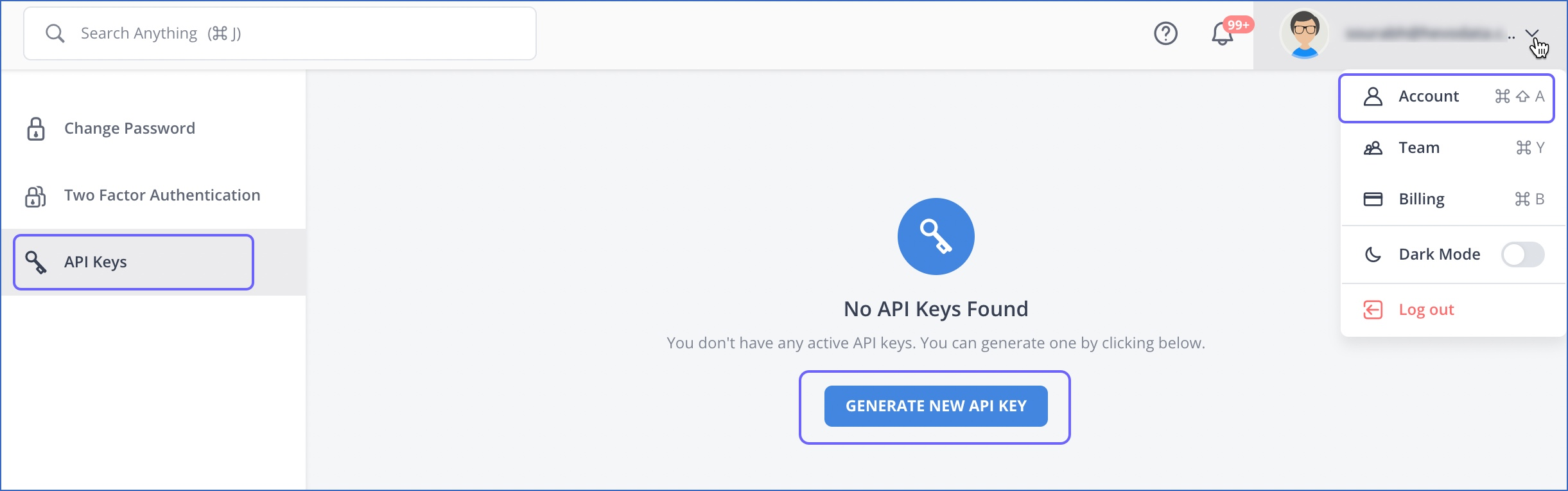

  • Log into your Hevo account and go to Account. Go to the API Keys to generate a New API Key.

  • Copy the Access Key and Secret Key.

Step 2) Add Hevo as a New Source

  • Select Platform Settings in the side bar

  • In the pop-out side panel, under Integrations click on Sources

  • Click Add Source and select Hevo

  • Select Direct Connect and add your Hevo details and click Next

  • Fill in the Source Settings and click Save & Next

    • Name: Give the Hevo source a name in K

    • Host: Can be any unique value. For example add asia.hevodata.com

    • Update the Host / Database mapping (refer to the mapping documentation). This step can be completed after the initial load via the guided workflow.

  • Add your Access Key (Client ID) and Secret Key (Client Secret) copied from Step 1 and click Save

  • Test your connection and click Save

  • Click Finish Setup

Step 3) Schedule Hevo source load

  • Select Platform Settings in the side bar

  • In the pop-out side panel, under Integrations click on Sources

  • Locate your new Hevo source and click on the Schedule Settings (clock) icon to set the schedule

Note that scheduling a source can take up to 15 minutes to propagate the change.

Step 4) Manually run an ad hoc load to test Hevo setup

  • Next to your new Source, click on the Run manual load icon

  • Confirm how you want the source to be loaded

  • After the source load is triggered, a pop up bar will appear taking you to the Monitor tab in the Batch Manager page. This is the usual page you visit to view the progress of source loads

A manual source load will also require a manual run of

  • DAILY

  • GATHER_METRICS_AND_STATS

To load all metrics and indexes with the manually loaded metadata. These can be found in the Batch Manager page.

Troubleshooting failed loads

  • If the job failed at the extraction step

    • Check the error. Contact KADA Support if required.

    • Rerun the source job

  • If the job failed at the load step, the landing folder failed directory will contain the file with issues.

    • Find the bad record and fix the file

    • Rerun the source job
