Hightouch (via Direct Connect method)

This page will guide you through the setup of Hightouch in K using the direct connect method.

Integration details

Known limitations

• Not all sources and destinations are currently covered. A future improvement is planned to cover sources & destinations generically.

• Current sources implemented (SQL method only):

  • SNOWFLAKE

  • POSTGRES

• Current destinations supported:

  • AMPLITUDE

  • BRAZE

  • GOOGLE_SHEETS

  • HUBSPOT

  • SALESFORCE

  • SLACK

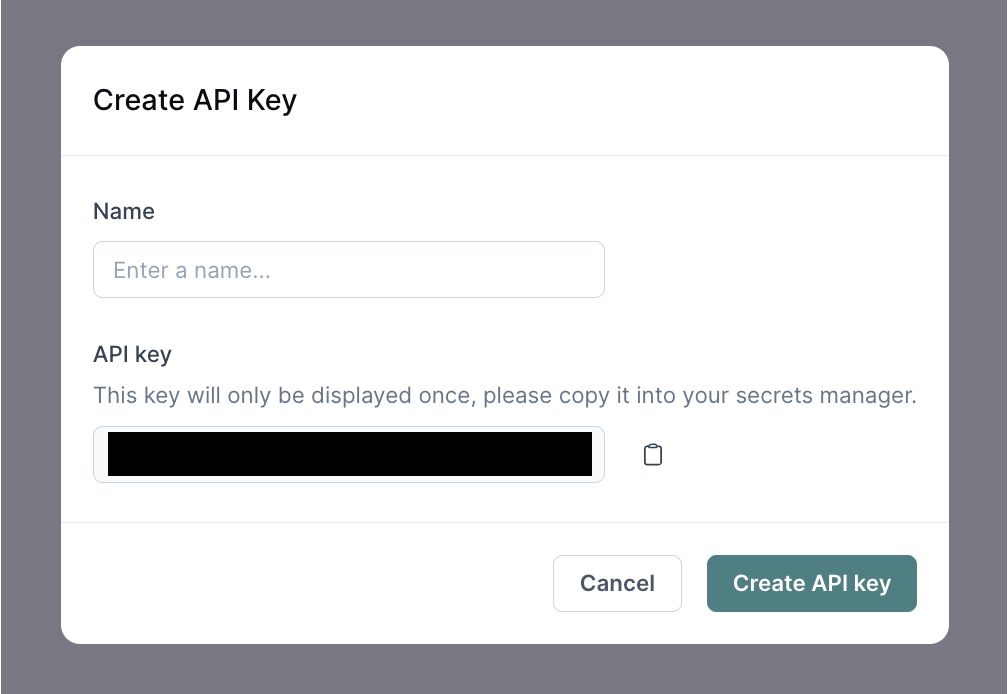

Step 1) Create an API Key

• Log into your Hightouch account and go to Settings.

• Go to the API Keys tab

• Click Add API Key

• Copy the API Key for the next step

Step 2) Add Hightouch as a New Source

• Select Platform Settings in the side bar

• In the pop-out side panel, under Integrations click on Sources

• Click Add Source and select Hightouch

• Select Direct Connect and add your Hightouch details and click Next

• Fill in the Source Settings and click Save & Next

  • Name: Give the Hightouch source a name in K e.g. Hightouch

  • Host: Can be any unique value. For example add app.hightouch.com/[hightouch account name]

• Add your API Key copied from Step 1 and click Save

• Test your connection and click Save

• Click Finish Setup

Step 3) Schedule Hightouch source load

• Select Platform Settings in the side bar

• In the pop-out side panel, under Integrations click on Sources

• Locate your new Hightouch source and click on the Schedule Settings (clock) icon to set the schedule

Note that scheduling a source can take up to 15 minutes to propagate the change.

Step 4) Manually run an ad hoc load to test Hightouch setup

• Next to your new Source, click on the Run manual load icon

• Confirm how you want the source to be loaded

• After the source load is triggered, a pop up bar will appear taking you to the Monitor tab in the Batch Manager page. This is the usual page you visit to view the progress of source loads

A manual source load will also require a manual run of

• DAILY

• GATHER_METRICS_AND_STATS

To load all metrics and indexes with the manually loaded metadata. These can be found in the Batch Manager page.

Step 5) Map Hightouch sources

• After the manual load is completed go back to the Sources page

• Next to the Hightouch source, click on the Merge Sources icon

• Select the Hightouch sources and merge them with the sources you have already integrated in K

Troubleshooting failed loads

• If the job failed at the extraction step

  • Check the error. Contact KADA Support if required.

  • Rerun the source job

• If the job failed at the load step, the landing folder failed directory will contain the file with issues.

  • Find the bad record and fix the file

  • Rerun the source job
